Towards Quantum Simulations in Particle Physics and Beyond on Noisy Intermediate-Scale Quantum Devices

The Big Picture

Imagine trying to simulate a hurricane on a 1970s calculator. That’s roughly where physicists stand when modeling quarks, gluons, and the strong force. Quantum chromodynamics, the theory governing these interactions, becomes mathematically intractable the moment you move beyond the simplest cases. Classical supercomputers choke on it.

The answers buried in those equations could explain one of physics’ deepest mysteries: why the universe contains any matter at all.

According to the Standard Model, matter and antimatter should have been created in equal amounts after the Big Bang and promptly annihilated each other. Yet here we are, made of matter. Something broke the symmetry. Physicists call it CP violation: particles and their antimatter counterparts don’t behave in exact mirror-image ways.

Understanding that asymmetry requires simulating real-time quantum processes that classical computers cannot handle. The culprit is the sign problem. When complex oscillating phases appear in quantum field theory calculations, the statistical sampling methods that normally tame these computations break down completely.

Quantum computers can sidestep the sign problem by simulating quantum systems directly with quantum hardware. But today’s machines are noisy and error-prone, operating in what’s called the noisy intermediate-scale quantum (NISQ) era.

A team from MIT, DESY, the Cyprus Institute, and Peking University has developed two algorithmic advances that make NISQ-era quantum simulations more reliable: a systematic way to build smarter quantum circuits, and a method to correct for the errors those circuits inevitably produce.

Key Insight: A new technique for designing minimal yet maximally expressive quantum circuits, combined with an efficient readout-error correction scheme, makes quantum simulations of particle physics measurably more reliable on today’s noisy hardware.

How It Works

The workhorse for NISQ simulations is the variational quantum eigensolver (VQE), a hybrid algorithm that splits labor between quantum and classical computers. The quantum device prepares a trial state and measures it. A classical optimizer then adjusts circuit parameters to minimize a cost function, pushing the trial state toward the true ground state.

Think of a circuit as a machine with knobs. The classical computer keeps turning them until the lowest-energy state emerges.

Two problems lurk underneath. First, how do you design the circuit itself? Before this work, circuit design was largely guesswork: borrowed from other contexts, built from generic templates (ansätze), with no principled way to know whether a given circuit could even represent the target quantum state. Second, every measurement is contaminated by readout errors, with hardware misidentifying quantum states at nontrivial rates.

The first advance, dimensional expressivity analysis, attacks circuit design head-on. The idea is geometric: the set of all quantum states reachable by a parameterized circuit forms a mathematical surface. If some parameters can be changed without affecting the output state, the circuit is wasting resources.

Expressivity analysis detects these redundancies by examining the Jacobian of the circuit’s output, a matrix that measures how sensitively each output changes when each parameter is nudged. Redundant parameters get removed. What’s left is a circuit that is minimal (no unnecessary gates) and maximally expressive (it reaches every quantum state its architecture allows).

Fewer parameters mean a shallower circuit, which means less decoherence, the tendency of quantum states to degrade from environmental noise. Applied to gauge theories in lower dimensions, including lattice formulations of quantum electrodynamics, this approach cut circuit depth without losing computational power.

The second advance targets measurement noise. Readout error mitigation works by characterizing a device’s error pattern: you build a map of how often hardware confuses each possible measurement outcome with another, then invert the resulting error matrix to correct future measurements.

The catch is scale. For n qubits, there are 2ⁿ possible outcomes, making the full error matrix exponentially large. The team’s solution exploits a property of real hardware: readout errors on different qubits are often approximately independent. Each qubit’s confusion between 0 and 1 doesn’t strongly depend on its neighbors. By measuring this independence and grouping correlated qubits together, they build an approximate error model that is tractable to invert and accurate enough to be useful.

The correction pipeline has four steps:

• Characterize: Measure the device on single-qubit basis states to extract per-qubit error rates
• Group: Identify qubits whose errors are correlated and handle them jointly
• Invert: Construct an approximate inverse of the error matrix for each group
• Correct: Apply this inverse to raw measurement outcomes to recover cleaner probability distributions

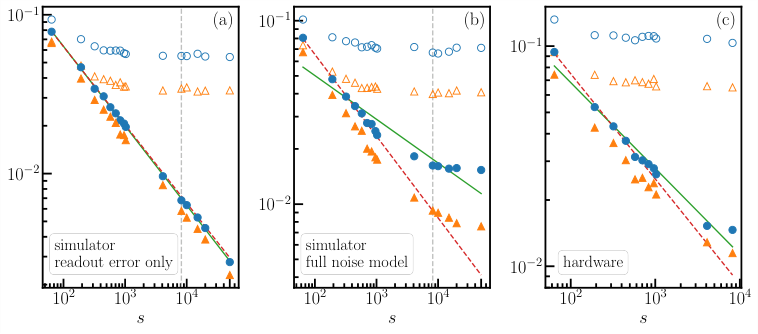

Combining leaner circuits with cleaner measurements produces results much closer to exact solutions. The team validated both methods against classical simulations, which provide ground truth for small quantum systems.

Why It Matters

Particle physics is the motivating application, but these techniques generalize. Any VQE calculation benefits from efficient circuits and accurate measurements, whether the target is a molecule, a condensed-matter system, or an optimization problem. The readout mitigation scheme works on any gate-based quantum computer regardless of the underlying qubit technology.

Simulating full quantum chromodynamics in 3+1 dimensions remains far beyond current hardware. But algorithmic improvements accumulate. Each gain in circuit efficiency or error correction is permanent infrastructure that compounds as hardware scales up. These are benchmarked improvements on real devices, not promises about future machines.

Bottom Line: Dimensional expressivity analysis and structured readout error mitigation deliver measurable improvements to quantum simulations on today’s noisy hardware, bringing particle physics closer to quantum tractability.
