Toward Automatic Interpretation of 3D Plots

The Big Picture

Flip through a scientific paper and you’ll eventually hit a 3D surface plot: a rippling mesh of curves representing a potential energy landscape, a risk surface, something with peaks and valleys and ridges. Your brain processes it almost instantly. You see the shape. Now try getting a computer to do the same thing. What felt effortless becomes fiendishly hard.

This is the problem Laura Brandt and William Freeman at MIT CSAIL took on. Thousands of 3D surface plots are published every year across scientific disciplines, each encoding quantitative data in a form that humans read fluently but machines cannot parse. Tools exist to extract data from 2D charts (bar graphs, scatter plots, pie charts), but for 3D plots, there has been nothing. The data inside those grids has stayed out of reach for automated systems.

Their approach: build a dataset from scratch, train a deep neural network on it, and show that a machine can learn to recover 3D shape from the same visual cues human vision relies on. Those cues are the sparse crossing lines drawn on the surface.

Key Insight: A neural network trained on a purpose-built synthetic dataset can recover 3D shape information from grid-marked surface plots, even when axes and shading are stripped away entirely.

How It Works

The core task is shape recovery from grid-marked surfaces. Given an image of a 3D surface plot with no axis labels, no color scales, and no shading, can a neural network reconstruct what the underlying surface actually looks like?

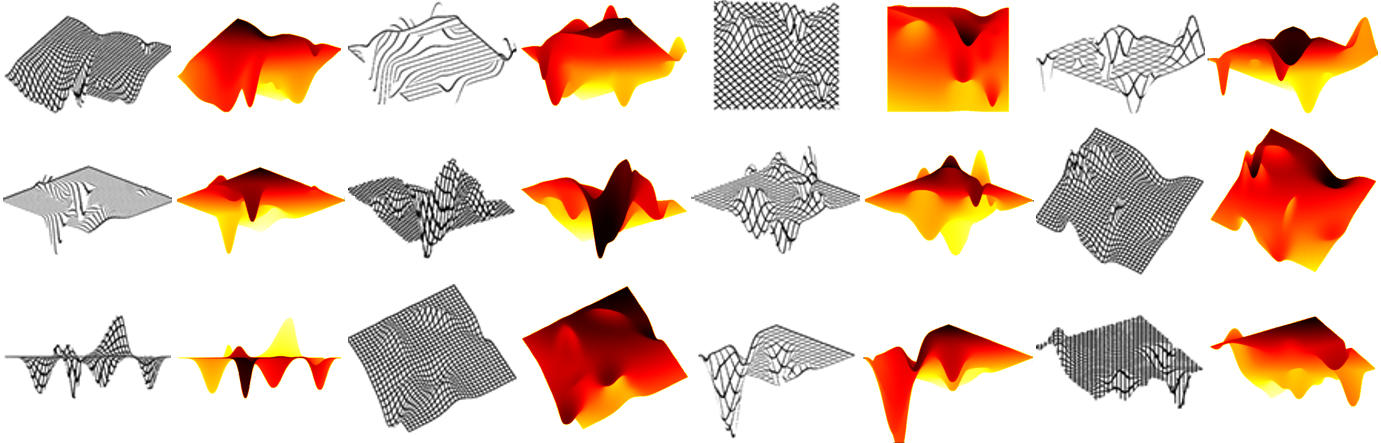

No large dataset of 3D surface plots paired with ground-truth shape information existed, so the team built one. SurfaceGrid contains 98,600 images of 3D grid-marked surfaces rendered alongside their corresponding depth maps, which are pixel-by-pixel records of how far each point on the surface sits from the camera. Depth maps encode 3D shape as a 2D image, making them a natural training target.

Getting enough variety into SurfaceGrid took real engineering work. The synthetic plots were rendered with multiple grid types: different line densities, colors, and styles mimicking the diversity found in real publications. The virtual camera orbited each surface to capture a range of viewpoints. Shading and axis information were left out entirely. That last choice was deliberate. Shading varies wildly between software packages, and axis labels need separate handling. Training on “naked” grid surfaces forces the model to learn the hardest part of the problem first.

The neural network uses a convolutional encoder-decoder architecture: it compresses an image into a compact internal representation, then expands it back into a depth map. The encoder extracts features from the input grid image; the decoder reconstructs depth from those features. The team also ran ablation studies, systematically removing or altering individual design choices to see which ones actually mattered.

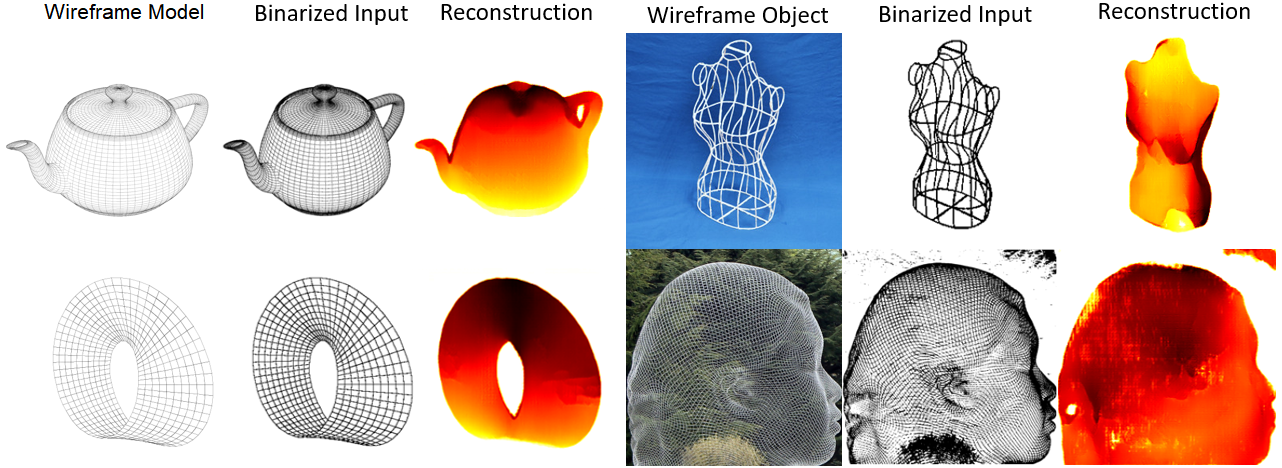

The model generalizes well across the visual variation baked into SurfaceGrid, which is what you’d need before tackling real published figures.

Why It Matters

The immediate payoff is practical: automated data extraction from scientific literature. Published figures contain quantitative information that is currently invisible to search engines and indexing systems. A system that could read 3D plots the way existing tools query tables would change how researchers navigate the scientific record. Instead of keyword searches, you could query by data shape: find me all papers whose potential energy surfaces have a double-well structure in this region.

Shape-from-X, reconstructing 3D geometry from 2D image cues, is one of the oldest challenges in computer vision. Prior work by Marr, Stevens, Weiss, and others relied on hand-crafted geometric assumptions: surfaces are locally cylindrical, contours behave like springs, viewpoints are generic. Those assumptions break down when you throw real scientific plots at them.

Brandt and Freeman’s data-driven approach sidesteps all of that, letting the network learn what constraints actually hold in the distribution of real 3D plots. The SurfaceGrid dataset is itself a standalone contribution, useful beyond this particular model for figure understanding, document analysis, and scientific data recovery.

Open questions remain. The current work uses only synthetic data. Getting to real published figures means handling axis detection, legend separation, and calibration; the authors flag all of these as future work. Recovering actual numerical values also requires a deprojection step to undo the perspective transformation applied when the figure was originally rendered.

Bottom Line: Brandt and Freeman have cracked open the 3D plot problem, creating the first dataset and model for automated shape recovery from grid-marked surfaces. The next step is real-world figures, but the foundation is here.
