Simulation-based Inference for Exoplanet Atmospheric Retrieval: Insights from winning the Ariel Data Challenge 2023 using Normalizing Flows

The Big Picture

Imagine trying to figure out the ingredients of a recipe by smelling the exhaust from a restaurant’s kitchen, from across the street, in a noisy city, without ever tasting the food. That’s roughly what astronomers face when analyzing exoplanet atmospheres. When a planet crosses its star, a sliver of starlight filters through its atmosphere, picking up the chemical fingerprints of water vapor, carbon dioxide, methane, and more. The resulting spectrum is faint, noisy, and the molecular signals overlap in ways that are hard to untangle.

The traditional approach, atmospheric retrieval, relies on statistical algorithms that test millions of possible atmospheric configurations and use probability calculations to zero in on the most likely answer. These methods work, but they’re slow. Painfully slow, given that the European Space Agency’s Ariel mission is expected to beam back spectra from roughly 1,000 exoplanets starting in 2029.

A team from the AstroAI group at the Harvard & Smithsonian Center for Astrophysics, with collaborators at MIT and beyond, built a faster solution and proved it works by winning a global machine learning competition against 293 teams.

Key Insight: By training a neural network called a Normalizing Flow to approximate the output of slow Bayesian algorithms, the AstroAI team matched the accuracy of traditional exoplanet atmospheric retrieval in a fraction of the time, making it practical to analyze thousands of planetary atmospheres.

How It Works

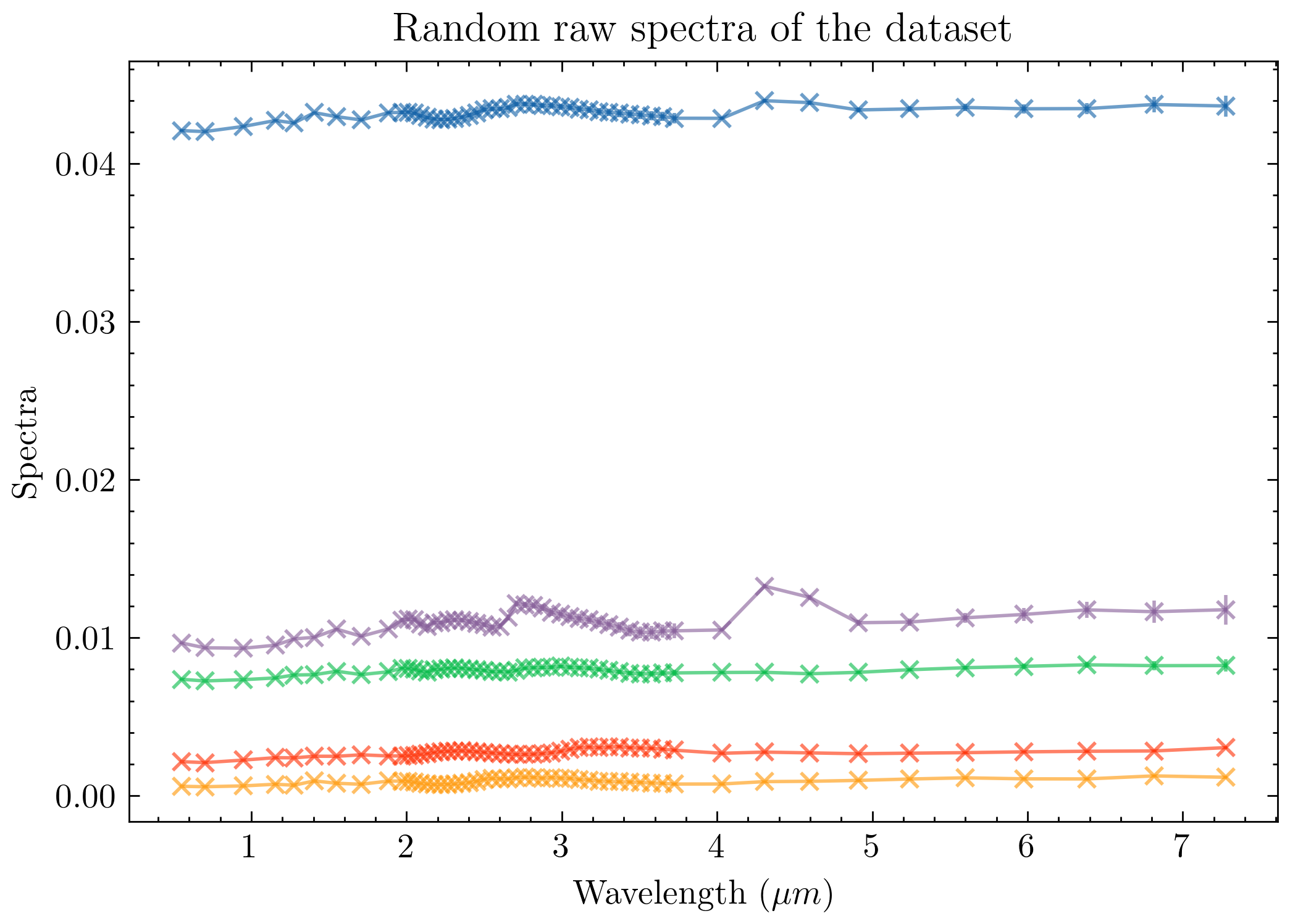

The team’s starting point was the Ariel Data Challenge 2023, a machine learning competition built around simulated exoplanet data. The dataset was generated using TauREx3, a physics-based forward model that takes atmospheric conditions as input and computes the resulting spectrum, running the science forward from cause to effect. For each of 41,423 simulated planets, the challenge provided the spectrum plus supporting measurements: stellar mass, radius, temperature, and distance, along with the planet’s mass, orbital period, and surface gravity.

The goal wasn’t simply to predict the best-fit atmospheric properties. It was to predict the full posterior probability distribution: the complete picture of which combinations of planet radius, temperature, and five molecular abundances (H₂O, CO₂, CO, CH₄, and NH₃) are consistent with the data. A single best-guess answer ignores uncertainty. A posterior captures it honestly.

Their tool for this was a Normalizing Flow, a type of neural network that learns to transform a simple distribution (like a bell curve) into a complex, arbitrarily shaped one. Given a spectrum and its supporting measurements, the trained network outputs a posterior distribution over seven atmospheric parameters.

The standard alternative is Nested Sampling, an algorithm that systematically explores the parameter space by evaluating billions of configurations. It’s reliable but can take hours per planet. A trained normalizing flow produces equivalent results in milliseconds.

The team built and compared three model variants:

• The winning model: trained directly on input parameters from the forward model
• An NS-trained model: trained on samples from Nested Sampling runs (available for only 6,766 of the 41,423 spectra)

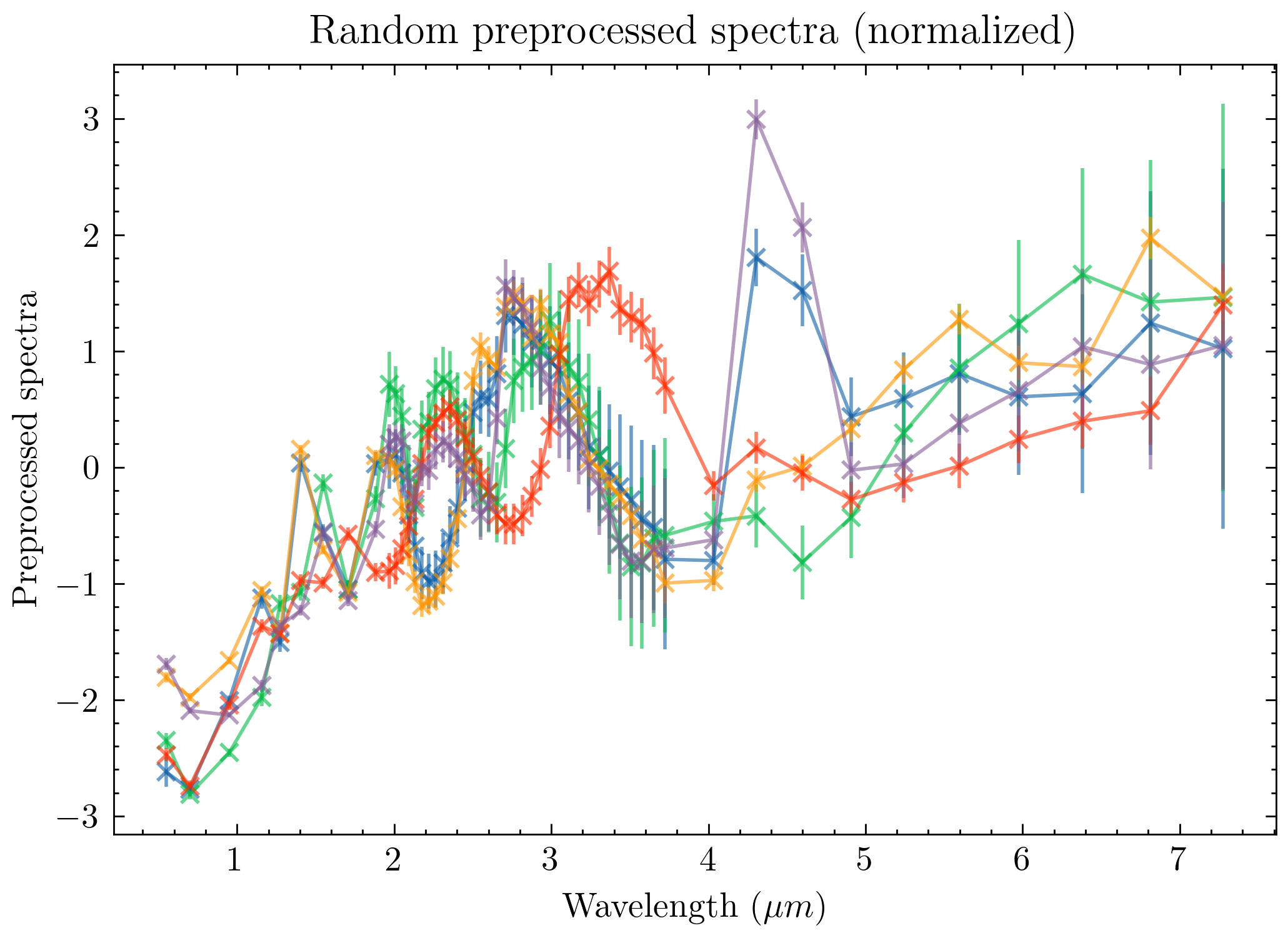

• A noised-spectra model: trained on noise-added spectra to better match real telescope observations

The winning model topped the leaderboard, but the paper is candid about a tension in the results. The NS-trained model, despite ranking lower, may be more scientifically valuable. The competition weighted 80% of its score on a Kolmogorov-Smirnov test, which measures how similar two distributions look in shape. That metric rewards matching Nested Sampling posteriors closely, including their quirks and biases. Because the NS-trained model targets those posteriors directly, it may be better aligned with ground truth even though it scores worse on an imperfect metric.

Why It Matters

The James Webb Space Telescope has already expanded our catalog of well-characterized exoplanet atmospheres, and Ariel will multiply that by roughly tenfold. The bottleneck is no longer data collection; it’s analysis.

Statistical retrievals that take hours per planet won’t scale to 1,000 worlds. Machine learning models trained to approximate those retrievals can run in seconds.

The paper also raises a methodological question that deserves attention: how do we evaluate AI models for science? Optimizing for a competition metric can diverge from optimizing for scientific accuracy, as the AstroAI team’s own results show. Their recommendation to rethink evaluation criteria applies well beyond exoplanets. When AI enters scientific workflows, the benchmarks need to be as carefully designed as the models themselves.

The team trained entirely on synthetic spectra from a physics simulator, with no real observational data, yet still produced a model that generalizes to unseen test cases. This simulation-based inference approach now appears across astrophysics, particle physics, and other fields where forward models are well understood but inverse problems are expensive to solve.

Bottom Line: The AstroAI team won a global machine learning challenge by using Normalizing Flows to replace slow Bayesian atmospheric retrievals with fast, uncertainty-aware neural inference. That speed matters: when Ariel begins surveying 1,000 exoplanet atmospheres in 2029, traditional methods simply won’t keep up.
