Sampling QCD field configurations with gauge-equivariant flow models

The Big Picture

Imagine trying to understand a crowd by sampling random people on the street. If the crowd moves freely, you get a representative sample quickly. But if it’s packed into tight clusters, mosh pits, and nobody moves between them, you could stand in one cluster all day and never learn about the others.

This is one of the central headaches in studying the strong nuclear force. Quantum Chromodynamics (QCD), the theory of quarks and gluons holding atomic nuclei together, is the most computationally demanding arena in fundamental physics. To extract predictions, physicists simulate QCD on a grid of spacetime points called a lattice, sampling from an enormous collection of possible field states called “configurations.” Traditional sampling algorithms suffer from two crippling problems.

First, critical slowing-down: as the lattice grows, the sampler must take increasingly tiny steps, grinding to a halt. Second, topological freezing: the simulation gets permanently stuck in one region of configuration space (that single mosh pit) and never escapes. A collaboration between MIT, DeepMind, NYU, and other institutions has now shown how machine learning components can be assembled into a flow-based sampler for full four-dimensional QCD.

Key Insight: By training neural networks that respect the fundamental symmetries of QCD, researchers have built a proof-of-principle flow-based sampler for lattice QCD configurations, targeting two of the worst bottlenecks in first-principles nuclear and particle physics calculations.

How It Works

The core idea comes from normalizing flows, a class of machine learning model that learns to transform a simple, easy-to-sample distribution into a complicated target distribution. Think of it like warping a flat map so that each uniform grid square corresponds to an equal-probability region of real, mountainous terrain. You draw from the flat map (easy), and the transformation gives you a sample from the terrain (hard).

In lattice QCD, the “terrain” is the QCD probability distribution, exponentially complex, riddled with sharp peaks and topological barriers. The flow model learns a transformation that maps simple random noise into field configurations distributed approximately according to the QCD action. These proposed configurations then feed into a Metropolis accept-reject step, a standard statistical technique that corrects any remaining approximation error. Randomly accepting or rejecting each proposal guarantees exact, unbiased results.

The real engineering challenge is gauge symmetry, the mathematical rule that certain field transformations must leave all physical predictions unchanged. A naive neural network would break this and produce garbage. The solution: gauge-equivariant coupling layers, network building blocks that transform field configurations in a way that automatically obeys gauge symmetry. The architecture stacks 48 of these layers, each parametrized by convolutional networks with four layers and 32 channels.

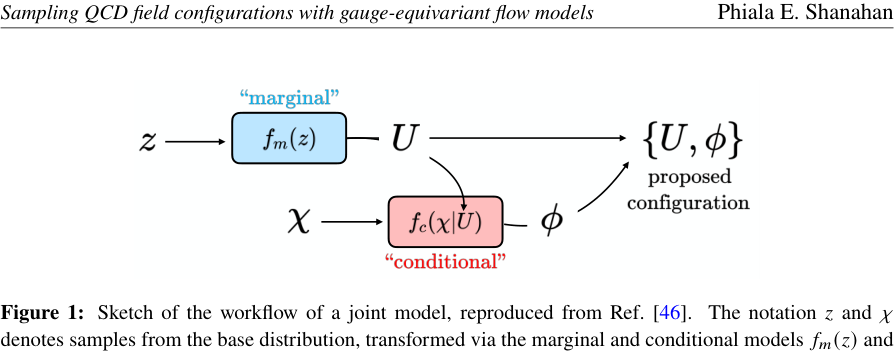

QCD also involves fermions (quarks), which add another layer of difficulty. The team handled this with a two-part architecture:

1. A marginal flow model that generates gauge field (gluon) configurations from a simple uniform random starting distribution
2. A conditional flow model that generates pseudofermion fields, auxiliary mathematical variables encoding quark quantum effects, conditioned on those gauge configurations

Drawing multiple pseudofermion samples for each fixed gauge background and averaging the resulting weights gives increasingly precise estimates of the Dirac operator determinant. This quantity encodes quark-gluon interactions and is notoriously expensive to compute.

The first numerical test used a modest 4⁴ lattice (four sites in each of four spacetime dimensions) with two fermion flavors and parameters far from the physically realistic regime. The goal was proof-of-principle: show that all the algorithmic pieces fit together and the sampler actually works.

Why It Matters

The two problems this approach targets are not academic nuisances. As lattice volumes grow toward physical relevance, with larger lattices, finer spacings, and lighter quark masses, traditional algorithms scale catastrophically. Topological freezing can invalidate results for quantities sensitive to the global topology of the gauge field, and many physically important observables fall into that category.

Flow-based methods offer a different scaling behavior. The flow generates independent samples rather than evolving through configuration space step by step, so it sidesteps the random-walk dynamics behind critical slowing-down. A well-trained flow can, in principle, move probability weight between topological sectors directly, escaping freezing entirely.

The challenge is scaling up. Moving from a tiny 4⁴ proof-of-principle to the large lattices (32⁴ or bigger) needed for precision physics will require more expressive architectures and significant computational resources. But the roadmap exists, and the pieces work.

Bottom Line: This work assembles gauge-equivariant and fermionic flow components into a working sampler for four-dimensional lattice QCD, a concrete step toward the next generation of nuclear and particle physics calculations.
