Observation of enhanced free-electron radiation from photonic flatband resonances

The Big Picture

Imagine trying to have a conversation in a crowded stadium where your voice reaches only a single seat. That’s the problem physicists face when getting electrons to talk to light. A free electron is a pinpoint particle that wants to emit a photon, but photons are wave-like objects spread across space.

The electron is tiny, the photon is extended, and they can only truly “meet” in one narrow way at a time. For decades, this mismatch has capped how efficiently electrons and photons interact, limiting everything from compact X-ray sources to particle accelerators.

A team at MIT, Harvard, and Technion found a way around it using a concept from condensed matter physics: the flatband. In a flatband, hundreds of different light waves all vibrate at exactly the same frequency, like a crowd all humming the same note regardless of where they’re sitting. By engineering these flatband resonances into a patterned silicon chip, the team coaxed free electrons into radiating light at 100 times the conventional rate. Theory suggests million-fold enhancements are within reach.

Key Insight: A photonic flatband provides a continuum of modes that match the momentum of free electrons across all transverse directions simultaneously, converting a point interaction into a line interaction and dramatically boosting light emission.

How It Works

There are two classic ways electrons emit light. Cherenkov radiation happens when a charged particle moves faster than light in a medium, the electromagnetic equivalent of a sonic boom. Smith-Purcell radiation happens when an electron skims over a periodic grating, causing its near-field to diffract and radiate. Both are real and useful, but both run into the same efficiency wall.

At any given frequency, the matching condition (where the electron’s motion and the light wave’s rhythm must align) picks out only a single isolated point in momentum space. Most of the electron’s potential to couple to light goes untapped.

Here’s the trick. Flatbands are photonic modes whose frequency stays nearly constant across a wide range of momenta. They replace that needle-and-eye geometry with something far more forgiving: a broad continuum of photonic modes all sitting at the same frequency. When an electron’s momentum surface sweeps through this flat region, it intersects not a point but an entire line of modes. The shape mismatch disappears.

To build this in hardware, the team designed a silicon-on-insulator photonic crystal slab, a thin silicon layer patterned with a precise array of microscopic holes on top of a silica substrate. By tuning the hole geometry, they created flatband resonances where the group velocity (the speed at which energy travels through the material) nearly vanishes and the density of states spikes.

They controlled the radiation by:

• Varying the electron velocity to satisfy the phase-matching condition at the flatband frequency
• Adjusting the twist angle between the electron beam trajectory and the crystal lattice orientation
• Selecting among multiple flatbands to access different radiation polarizations

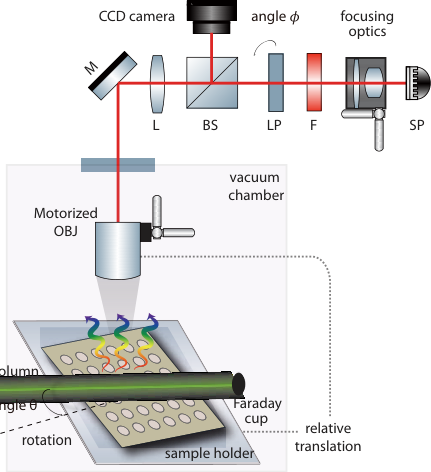

The experimental setup fired electron beams from a scanning electron microscope at grazing incidence over the photonic crystal chip and collected the emitted light. Compared to conventional Smith-Purcell radiation from a plain grating, flatband-enhanced emission was 100 times brighter. Theoretical modeling projects enhancements of 10⁶ or higher for optimized device geometries.

The team also used the electron beam itself as a probe. By mapping how light is emitted at different angles as electron speed changes, they reconstructed the photonic band structure of the crystal, accessing information that conventional optical measurements can’t easily reach.

Why It Matters

The interaction between free electrons and photons underpins technologies from medical imaging to materials science. Electron microscopes rely on it to probe matter at atomic scales. Free-electron lasers use it to generate brilliant X-ray beams for studying proteins and chemical reactions.

Compact light sources based on Smith-Purcell radiation have long been proposed for terahertz and X-ray generation, but weak emission has held them back. Boosting that emission by factors of millions on a chip-scale photonic crystal, rather than in a room-sized accelerator hall, would be a different story entirely.

The same flatband approach applies to dielectric laser accelerators, devices that use light waves to push electrons to higher energies. The coupling efficiency in those devices runs into the identical shape mismatch. Controlling free-electron radiation polarization through multiple flatbands also opens up new forms of structured light generation, where electrons are routed over engineered crystal regions to produce light with tailored properties.

The approach carries over to two-dimensional materials, moiré superlattices (atomically thin layers twisted against each other to create new electronic patterns), and other photonic systems where flatbands appear. As the authors put it, flatbands are “ideal test beds for strong light-electron interaction.”

Bottom Line: Using photonic flatband resonances in a silicon chip, researchers at MIT, Harvard, and Technion achieved a 100-fold enhancement of free-electron light emission, with theory pointing toward million-fold gains. The result opens new ground for coupling electrons and photons in compact, chip-integrated devices.
