Meta Flow Maps enable scalable reward alignment

The Big Picture

Imagine you’re a sculptor who has spent years mastering clay. Now someone asks you to make sculptures that aren’t just beautiful but specifically dramatic: tension, movement, urgency. You have the skill, but redirecting every nuance of your technique toward this new constraint means rethinking each step from scratch. Modern AI image generators face the same problem.

These systems have gotten very good at producing high-quality images. But making them consistently produce exactly what you want, say images that score highly on aesthetic appeal or fidelity to a text description, is expensive.

The reason is mathematical. Today’s best image generators work by gradually transforming random noise into a coherent picture through a long sequence of small steps. To steer this process toward a goal (“make images that look more like a majestic volcano”), you need to know, at every intermediate step, what the final image is likely to look like: the full range of plausible finished images that could emerge from the current half-formed, noisy state.

Getting that distribution right typically means running the full generation process many times over. It’s like needing to fast-forward a movie to its ending thousands of times just to decide what happens next.

A team from Oxford, NYU, and Google DeepMind found a way to compress all that expensive future-peeking into a single learned operation, one that can be reused across any reward at a fraction of the cost.

Key Insight: Meta Flow Maps learn to generate arbitrarily many samples from the full range of plausible finished images in a single step, turning an expensive computational bottleneck into an efficient, reusable operation for both real-time steering and permanent model fine-tuning.

How It Works

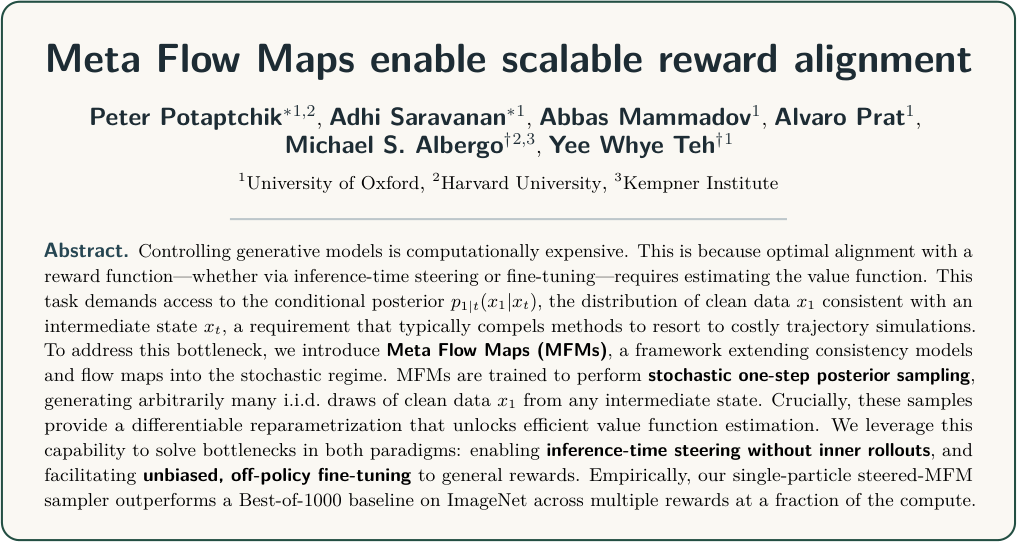

The paper introduces Meta Flow Maps (MFMs), a framework that makes this expensive computation cheap and reusable.

To see why they’re needed, consider the two main strategies for reward-aligned generation. Inference-time steering adjusts the generation process on the fly without changing the model itself: the pretrained model stays frozen while the sampling trajectory gets nudged toward high-reward outputs. Fine-tuning, by contrast, permanently updates the model’s parameters to internalize a new reward.

Both strategies depend on the same mathematical quantity: the value function, the expected future reward given the current noisy state. Its gradient tells you which direction to push the generation process. Computing that gradient accurately requires many samples from the distribution of plausible finished images, and those samples have historically required expensive trajectory simulations.

MFMs attack this by training a single amortized model, one trained once to handle many different situations so the upfront cost gets spread across all future uses. For any intermediate noisy state, an ODE (ordinary differential equation) exists that transports noise to the correct distribution of finished images.

Standard flow maps, fast few-step approximations to these ODEs, already exist. But they’re deterministic. Feed them a state and they produce one predicted endpoint. They can’t represent the diversity of possible clean images consistent with that noisy state.

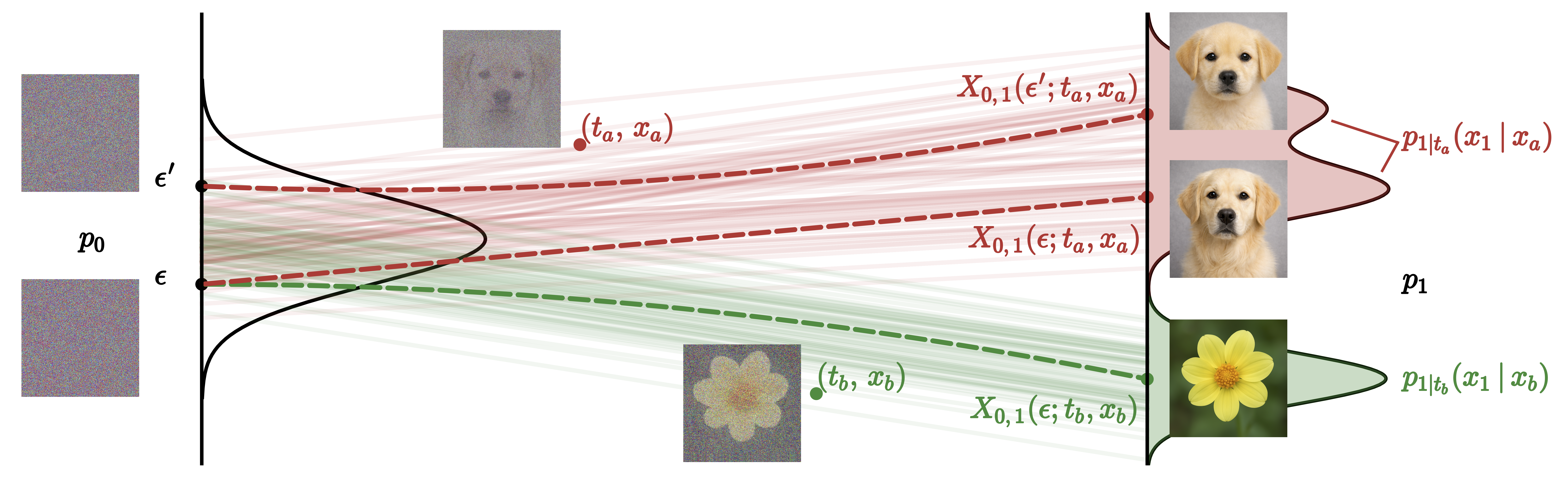

MFMs fix this by conditioning on an additional random noise input. Vary that noise, and you get different samples, all valid draws from the same distribution. One model, many samples, one step each.

Training works as follows:

1. Sample an intermediate noisy state along a standard generative trajectory.
2. Construct the conditional ODE targeting the posterior for that state.
3. Train the MFM to reproduce the endpoint of that ODE given a noise seed, using a flow matching objective.
4. Amortize across all possible intermediate states simultaneously, so the MFM handles any state it encounters during generation.

The result is a differentiable reparametrization of the posterior. MFM samples depend on their input noise in a smooth, mathematically tractable way. You can plug them directly into value function estimates and differentiate through them, producing asymptotically exact, unbiased gradient estimates for both steering and fine-tuning.

Why It Matters

On ImageNet, the authors’ single-particle steered-MFM sampler outperforms a Best-of-1000 baseline across multiple reward functions, at a fraction of the compute. Beating exhaustive search over a thousand random generations with a single guided sample is not a small improvement.

The model was trained using only class labels, yet steering with a human preference reward (HPSv2) produces images that match detailed text prompts. The base model never had that capability.

This approach is not limited to image generation. Scientific domains like protein design, drug discovery, and materials science all involve maximizing some property function over a complex generative model. Alignment costs have been a real barrier to deploying these methods at scale. MFMs could lower that barrier, since the expensive posterior sampling happens once at training time rather than being repeated for every new task.

Bottom Line: Meta Flow Maps eliminate the core computational bottleneck in reward-aligned generative modeling. A single trained model can steer any reward efficiently, outperforming exhaustive search at a fraction of the cost.
