Learning Integrable Dynamics with Action-Angle Networks

The Big Picture

Imagine predicting where a pendulum will be in an hour by simulating every tiny tick of time between now and then. Each step introduces a small error, a rounding here, an approximation there, and those errors pile up. By the end, your prediction might be wildly wrong. Most machine learning simulators for physical systems suffer from exactly this: step-by-step mistakes compounding into catastrophic drift.

Physics has known a way around this for over a century. Certain physical systems, called integrable systems, have so much hidden symmetry that their behavior can be described simply. Describe them in the right coordinates, and predicting the future requires nothing more than multiplication and addition. A spinning top, an orbiting planet, a vibrating crystal: wildly complicated in everyday terms, but change your perspective and they’re just clocks ticking at steady rates.

A team of researchers from MIT, Princeton, LMU Munich, and the Flatiron Institute has built a neural network that learns to find those special coordinates automatically, then uses them to simulate physical systems without ever accumulating step-by-step error.

Key Insight: Action-Angle Networks transform complex physical dynamics into a space where evolution is perfectly linear, eliminating the error accumulation that plagues traditional learned simulators and keeping long-range predictions stable.

How It Works

The mathematical engine here comes from classical mechanics: action-angle coordinates. In a Hamiltonian system (one described by positions and momenta), these coordinates exist whenever the system has enough conserved quantities to be integrable. The right coordinate transformation splits the description into two parts.

The actions (think of them as the energy content of the motion) stay constant forever. The angles (the phase along the motion’s cycle) increase at a perfectly steady rate. Predicting the future in these coordinates is trivial: multiply angular velocity by elapsed time and add. No integration. No error buildup.

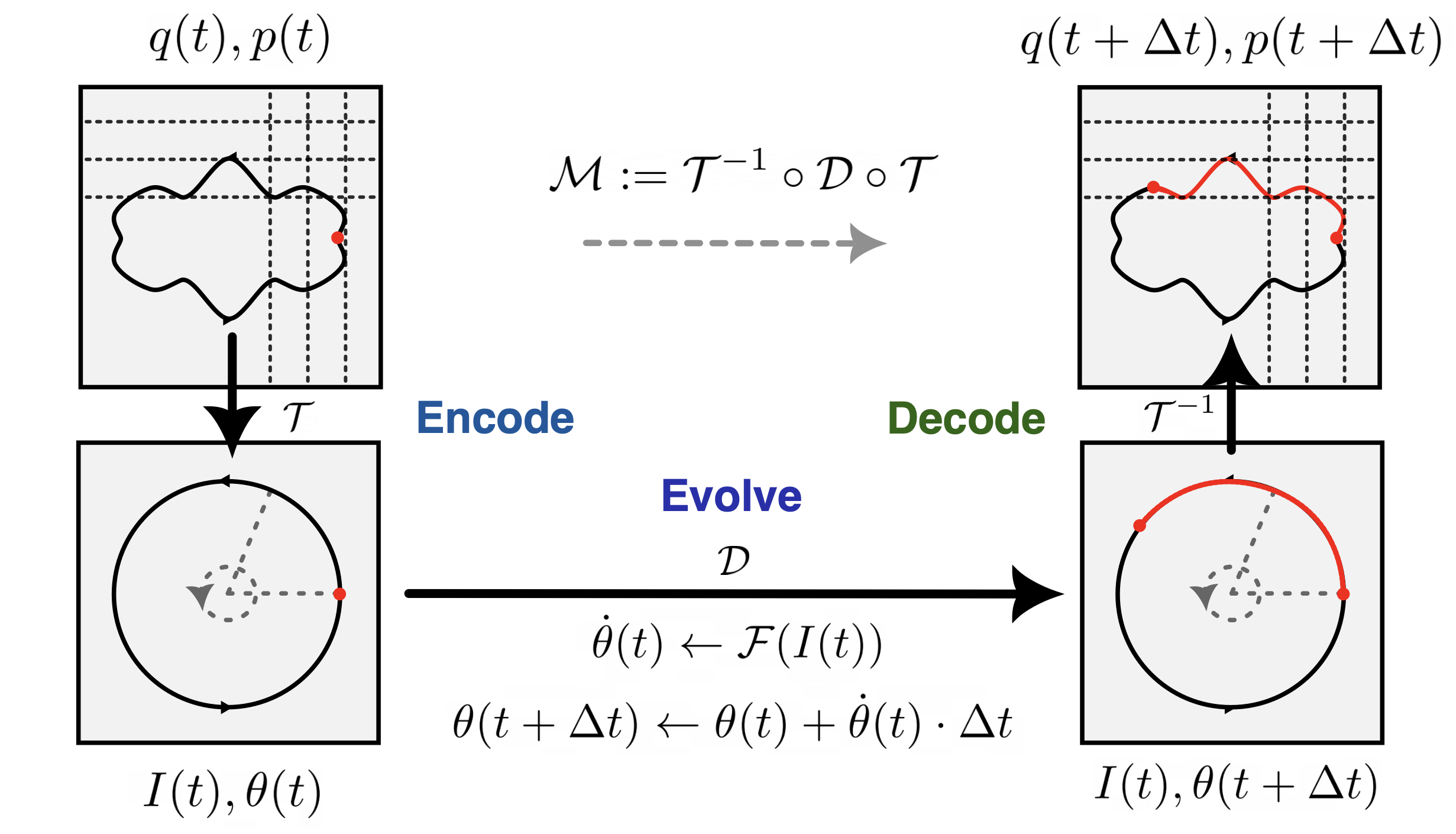

The catch? Finding these coordinates has historically required deep mathematical insight. The Action-Angle Network learns them from data. The architecture has three stages:

1. Encode: A stack of symplectic normalizing flows maps ordinary positions and momenta into an intermediate representation. These transformations preserve the conservation laws baked into the physics. A polar coordinate conversion then produces proper action-angle coordinates (I, θ). Because the transformation is symplectic, it can never violate conservation of energy or momentum.

2. Evolve: A small multi-layer perceptron (MLP) takes the actions I and predicts the angular velocities θ̇. Since the actions are constant along any trajectory, this only needs to happen once. The angles then advance as: θ(t + Δt) = θ(t) + θ̇ · Δt (mod 2π). Just arithmetic.

3. Decode: The inverse of the learned symplectic map sends the updated action-angle state back to physical coordinates.

A subtle design choice matters here: the network doesn’t map directly onto a torus (the donut-shaped surface that is the natural geometry for looping angle coordinates), which would create numerical trouble at the edges. Instead, it outputs Cartesian components and converts to polar form. A small trick, but it makes training much more stable.

The payoff is a simulator whose cost doesn’t depend on the time horizon at all. Predict a system’s state one second ahead or one million seconds ahead: same computation, same price. Traditional integrators work proportionally harder for larger time jumps. Action-Angle Networks don’t.

Why It Matters

This work belongs to a growing effort to embed physical structure directly into neural networks rather than hoping the network discovers it from data alone. Constraining the encoder to only learn symplectic transformations isn’t just mathematical aesthetics; it’s what makes the whole approach trustworthy over long rollouts. The network cannot violate conservation laws even if it wanted to.

Automatically discovering action-angle coordinates for complex systems is useful in its own right. Integrable systems turn up throughout fundamental physics: particles in electromagnetic traps, quantum spin chains, planetary orbital mechanics. When a researcher suspects a system might be integrable but can’t write down its action-angle coordinates analytically, this framework offers a data-driven alternative.

The learned coordinates themselves open questions for follow-up work. Future extensions might tackle nearly integrable systems, where weak perturbations break exact integrability. That direction connects to the physics of chaos and the KAM theorem, which describes how ordered motion gradually breaks down under perturbation.

Bottom Line: By teaching a neural network to find the coordinates where physics becomes linear, Action-Angle Networks avoid compounding simulation errors entirely, delivering fast, stable predictions whose cost stays flat no matter how far into the future you look.
