Learning an Effective Evolution Equation for Particle-Mesh Simulations Across Cosmologies

The Big Picture

Imagine trying to model the entire universe, every clump of dark matter, every gravitational tug between galaxies, using a computer. Now imagine the most accurate way to do it would take longer than the age of the universe itself. That’s what cosmologists face when they run N-body simulations, the gold-standard tool for tracing how large-scale cosmic structure formed and evolved over 13 billion years.

The math is brutal: simulating gravitational interactions between n particles means every particle must feel the pull of every other. Double the particles, quadruple the work. Physicists reached for a shortcut. Particle-mesh (PM) simulations bin particles onto a grid and solve gravity using Fast Fourier Transforms, converting spatial information into frequency components and making the computation vastly cheaper. These run in a fraction of the time.

The catch? The grid is coarse. Small-scale details get blurred or lost entirely: the dense clumps of dark matter where galaxies form, the fine threads of the cosmic web. It’s like trading a 4K camera for a disposable film camera. You capture the scene, but you lose the texture.

A team from the Université de Montréal, Mila, MIT, and the Flatiron Institute found a way to recover most of that resolution. They trained a neural network to learn, from data alone, exactly how the fast simulation goes wrong and how to fix it.

Key Insight: A small neural network operating in Fourier space can learn to correct the gravitational errors in fast particle-mesh simulations, producing accurate predictions across a wide range of cosmologies without ever being told which cosmology it’s running in.

How It Works

The approach builds on effective field theory, a framework physicists use to model behavior at one scale without tracking every detail at smaller scales. Instead of adding back fine-grained particle interactions by hand, the researchers asked: can a neural network learn the effective equation of motion that a coarse simulation should be following?

Their simulator, JaxPM, is written in JAX and treats the simulation as a system of ordinary differential equations (ODEs) describing how particle positions and velocities evolve over time. Because the whole thing is differentiable, gradients flow back through the simulation itself, not just the network on top.

The correction works in four steps:

1. Run a PM simulation as normal (fast but inaccurate at small scales).
2. Apply a neural network correction to the gravitational potential in Fourier space, before computing forces on each particle.
3. Update particle positions and velocities using the corrected forces.
4. Repeat at each time step as the simulation evolves from redshift z = 127 (the early universe) to z = 0 (today).

The network is small on purpose: five hidden layers of 64 neurons each, with sinusoidal activations. Its outputs are coefficients of a B-spline, a smooth curve that shapes how the correction varies across spatial scales. The inputs are minimal: the scale factor a (how expanded the universe is), the wavenumber |k| (which spatial scale is being corrected; large |k| means small-scale structure), and two cosmological parameters, Ω_m (matter density) and σ₈ (amplitude of density fluctuations).

By construction, the network is isotropic: it treats all spatial directions equally, respecting a fundamental symmetry of the universe. Training used 1,000 simulations from the CAMELS suite, all dark matter-only runs. Cosmological parameters were spread across a Latin Hypercube sampling grid to ensure even coverage.

The loss function was simple: the L2 distance between corrected PM particle positions and velocities versus the reference N-body simulation. No power spectrum matching. No fancy statistics. Just: make the particles end up in the right place, moving at the right speed.

Why It Matters

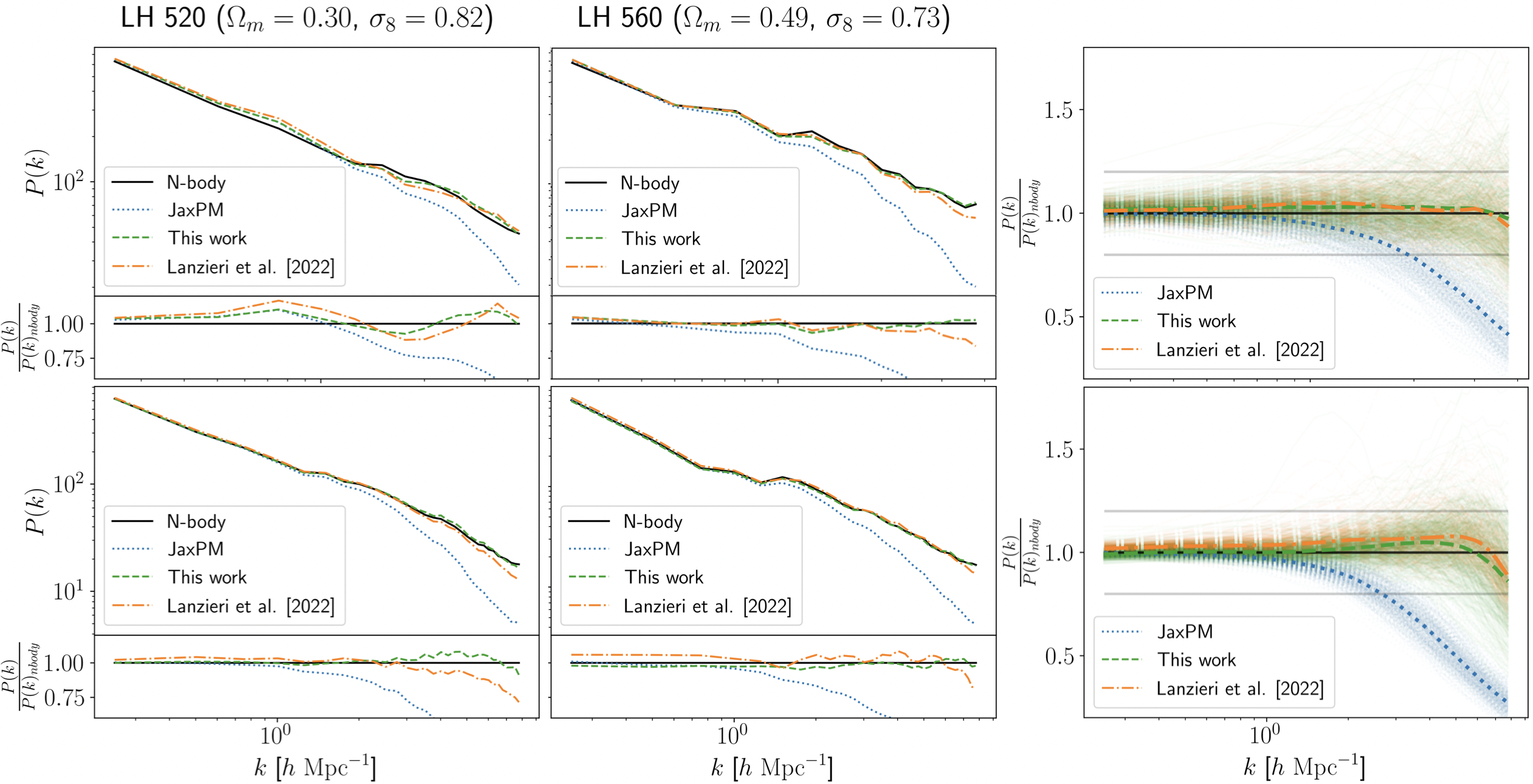

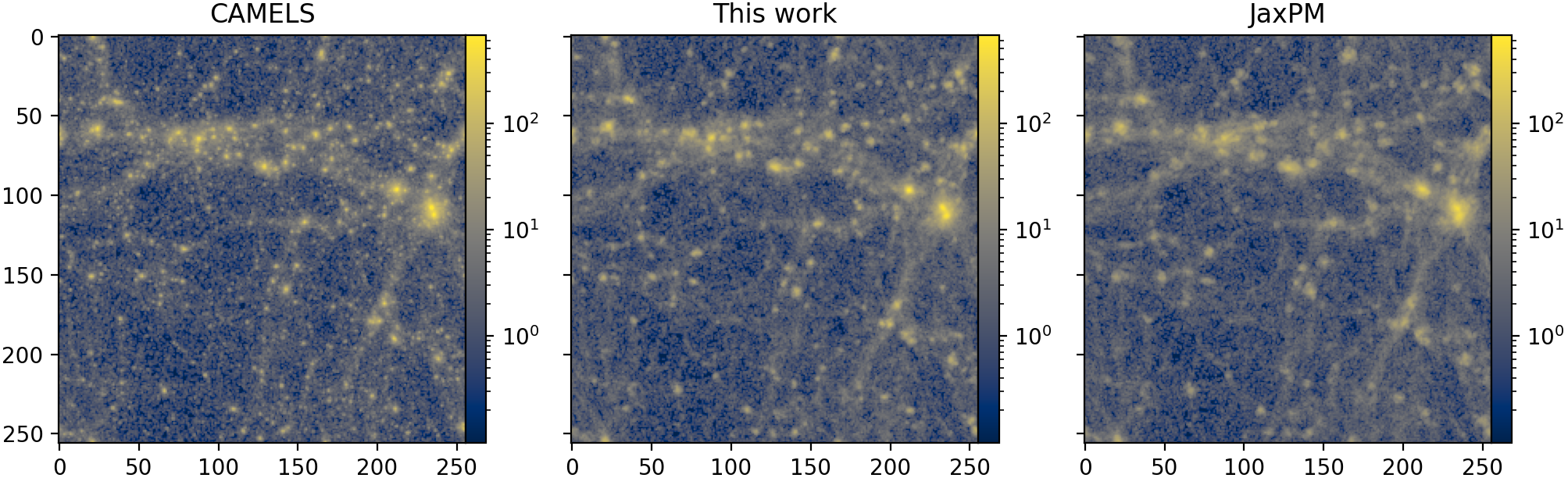

The payoff comes in two parts. First, the correction generalizes. On cosmologies never seen during training, the corrected simulations far outperform uncorrected PM runs, recovering small-scale structure the fast method would otherwise miss.

This is not a given. Neural networks that learn corrections inside dynamical systems can easily overfit to specific training conditions. That this one doesn’t suggests it has learned something close to a true physical correction, not just a statistical patch.

Second, the corrected simulations plug directly into simulation-based inference (SBI), a modern approach to cosmological parameter estimation that bypasses writing down an explicit likelihood function. SBI uses raw simulation outputs to ask which cosmological parameters best fit the data, rather than compressing everything into hand-chosen statistical summaries.

Feeding corrected PM outputs into an SBI pipeline yields unbiased constraints on Ω_m and σ₈. Uncorrected PM simulations introduce systematic errors that would skew those measurements. This matters for surveys like DESI, Euclid, and the Rubin Observatory, where sub-percent accuracy in parameter inference is the target.

What makes it work is the architecture. The correction lives in Fourier space, respects isotropy, and trains only on positions and velocities. It corrects the dynamics at each time step, not just the final output, so it inherits the simulation’s physical structure rather than working around it. That makes it more transferable than a black-box emulator trained on snapshots.

Bottom Line: By learning a small but precise correction to how gravity is computed in fast cosmological simulations, this work makes cheap simulations nearly as accurate as expensive ones, and does so in a way that generalizes across cosmologies, opening the door to unbiased parameter inference at scale.
