Inferring the Morphology of the Galactic Center Excess with Gaussian Processes

The Big Picture

Imagine trying to identify a faint glow hidden inside a fireworks display. That’s roughly the challenge astronomers face when studying the heart of our galaxy. The Milky Way’s center blazes with gamma rays produced by cosmic rays slamming into gas clouds, remnants of exploded stars, and thousands of compact objects. Buried in that chaos is an extra glow that nobody fully understands.

Since 2009, scientists analyzing data from NASA’s Fermi gamma-ray space telescope have noticed an unexplained surplus of gamma rays from the Galactic Center, known as the Galactic Center Excess (GCE). It’s not subtle: by some estimates, it accounts for roughly 10% of all gamma-ray light from the inner galaxy outside the flat disk of the Milky Way.

Two explanations have battled for dominance. One invokes dark matter particles annihilating each other, consistent with a particle about 100 times the mass of a proton whose properties match theoretical predictions for dark matter left over from the early universe. The other blames millions of rapidly spinning dead stars called millisecond pulsars (MSPs), individually too faint to resolve, collectively producing that telltale glow.

The catch? Answering this question requires knowing the shape of the excess, and every analysis so far has assumed that shape rather than measured it freely.

A team from Rutgers, McGill, MIT, and Harvard’s IAIFI took a different approach: instead of assuming a fixed shape, they let the data speak for itself. Their tool is a Gaussian process, a machine learning technique that maps the structure of the GCE with minimal built-in assumptions about what the answer should look like.

Key Insight: By replacing fixed morphological templates with a flexible Gaussian process model, the researchers found unexpected structural features in the Galactic Center Excess and showed that the physical interpretation of the excess depends more heavily on modeling assumptions than prior analyses suggested.

How It Works

The standard approach works like a paint-by-numbers kit. Astronomers construct templates (spatial maps predicting where different gamma-ray sources should be) and fit those templates to Fermi data. The GCE template is usually an NFW-squared profile, the expected shape from dark matter annihilation, or a bulge template tracing old stars near the galactic center. Both approaches bake in an assumption about the answer before the analysis begins.

The Gaussian process approach is fundamentally different. A GP is a non-parametric probabilistic model: it can take any shape and encodes only smoothness assumptions. Think of it as handing an artist a photograph and asking them to paint what they see, rather than asking them to trace a pre-drawn outline. The GP assigns flux values to every pixel and allows them to vary continuously, constrained only by the expectation that nearby pixels should have similar values.

Fitting a GP to sky maps with thousands of pixels is computationally brutal. The team made it tractable with two techniques:

• Stochastic variational inference (SVI): Recasts Bayesian inference (normally a slow statistical search over possible solutions) as an optimization problem, making it practical where traditional Markov Chain Monte Carlo sampling would be hopelessly slow.
• Sparse GP approximations: Uses a smaller set of “inducing points” to represent the full spatial field, scaling computation to the ~10³ spatial bins in the region of interest.

The analysis covered a 20-degree circle around the Galactic Center in a single energy bin from 2–20 GeV, with an outer annulus (30–40 degrees) used to calibrate background templates without GCE contamination.

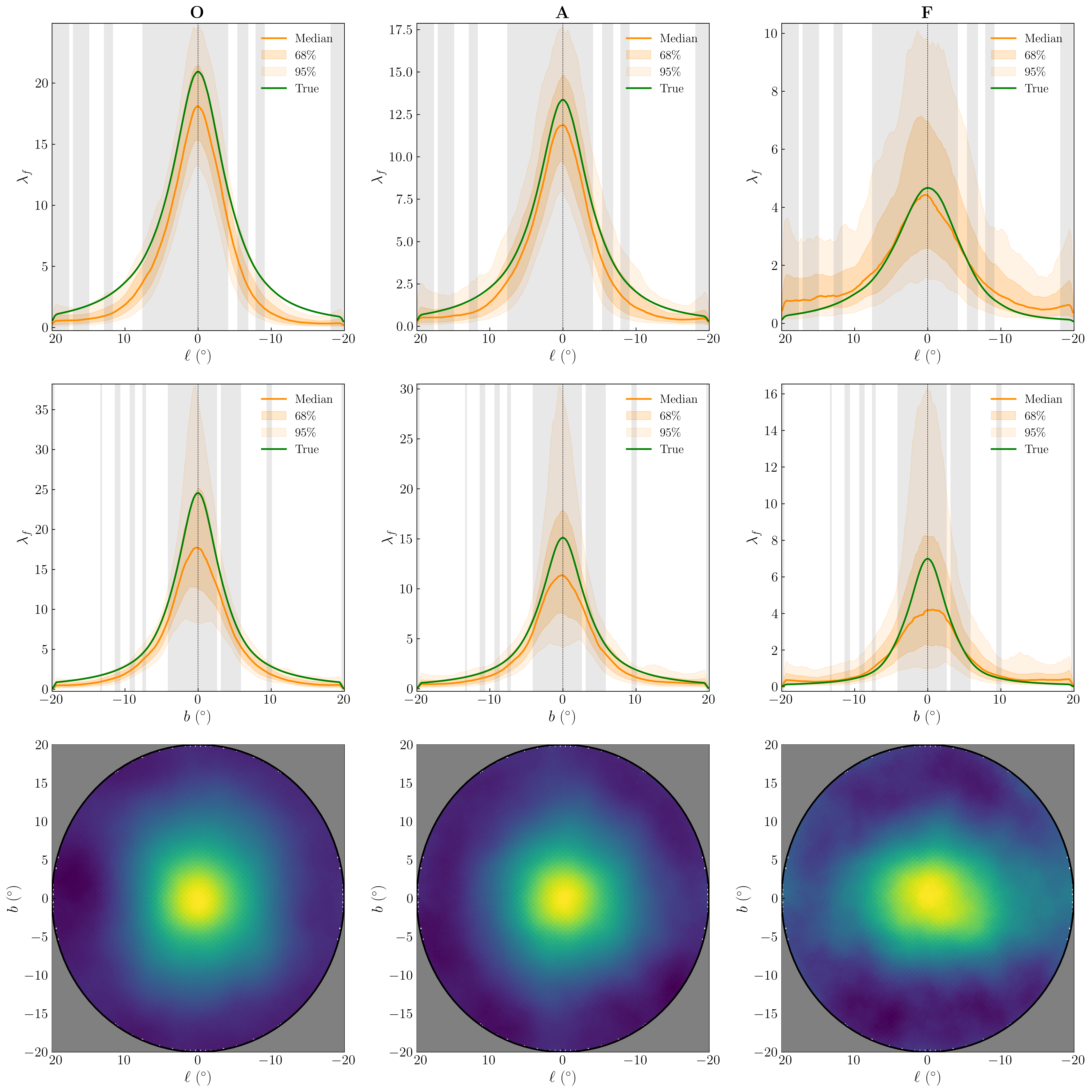

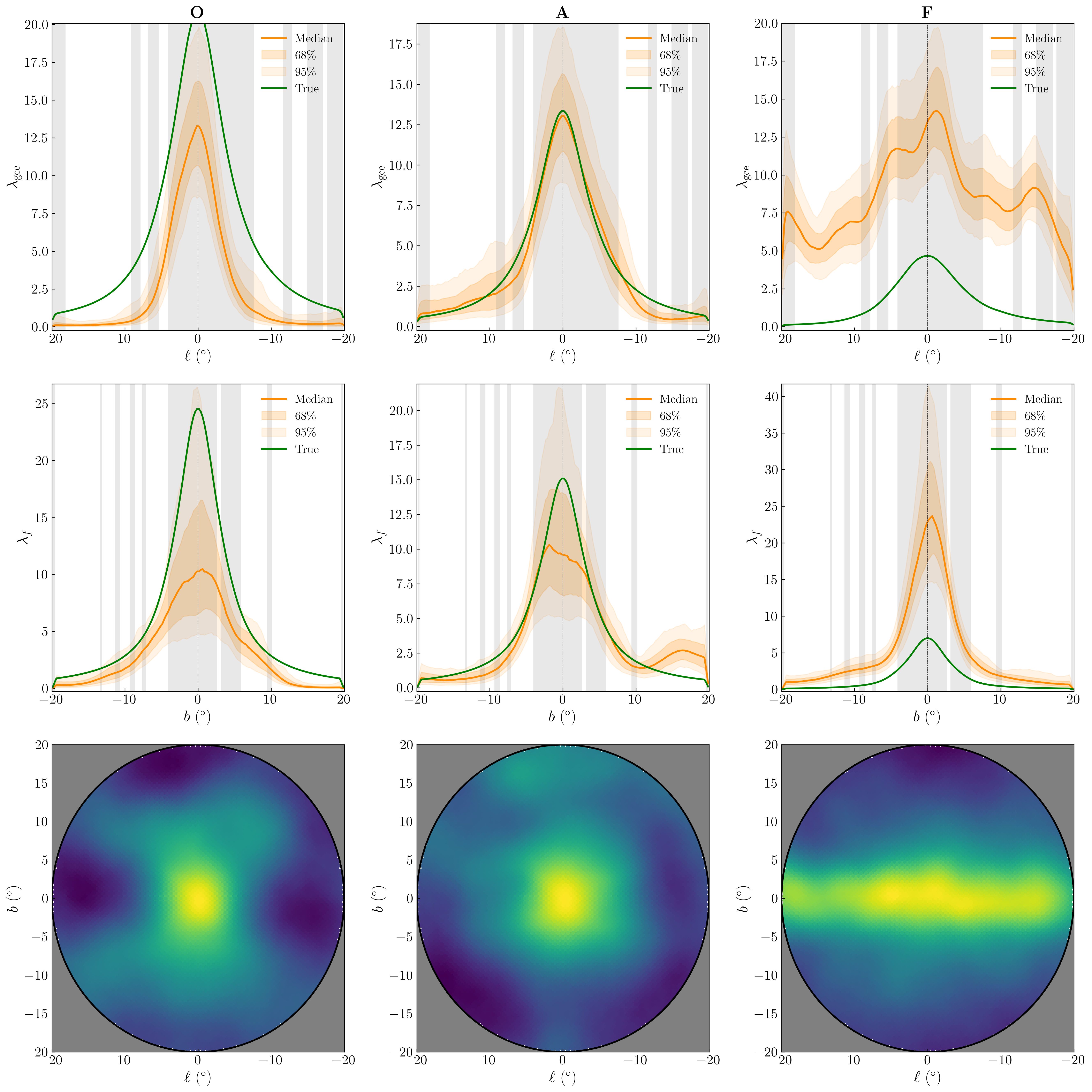

Before touching real data, the team validated their method on synthetic datasets. Fake gamma-ray skies generated from known templates confirmed that the GP could recover the input morphologies. The method held up across different kernel functions, numbers of inducing points, and GCE assumptions. A final stress test checked robustness to deliberately mismodeled diffuse emission, since background mismodeling is the field’s perennial nemesis.

They then fit the model to actual Fermi data using multiple independent diffuse emission models to quantify systematic uncertainty. This step matters because conclusions in this field depend strongly on background assumptions.

Why It Matters

The best-fit GP does not look like a clean NFW-squared distribution. It contains two unexpected features: a localized bright source near galactic coordinates (ℓ, b) = (20°, 0°), and a diagonal arm extending northwest from the Galactic Center. Neither structure appears in standard GCE analyses.

Whether they represent real astrophysical sources, artifacts of background mismodeling, or something stranger remains an open question.

When the team decomposed their best-fit GP into familiar template components, the winner was a combination of the Coleman et al. (2020) stellar bulge template plus an NFW-squared component. Not purely dark matter, and not purely MSPs. This hints at a baryonic (stellar) contribution to the GCE. But the sensitivity of this conclusion to background model choice and sky region means the dark matter interpretation cannot be ruled out.

The method itself may prove as important as the specific results. Flexible ML models can slot directly into gamma-ray likelihood analyses at scale, making template-free morphological inference practical for other problems in astrophysics. The authors point to a full spectral GP analysis as the natural next step: simultaneous fitting across energy bins could break remaining degeneracies between the GCE and background components.

Bottom Line: The first Gaussian process analysis of the Galactic Center Excess reveals unexpected structure and shows that the dark-matter-vs-pulsars debate depends on modeling choices more than anyone realized.
