Implicit Augmentation from Distributional Symmetry in Turbulence Super-Resolution

The Big Picture

Try teaching a student to recognize cats by showing them only cats lying on their sides. They’ll struggle with a cat sitting upright. Train them on billions of photographs from every angle, though, and rotational understanding develops on its own. Not because you drilled it in, but because the data did the work.

Something similar is happening inside AI models trained to simulate turbulence. Turbulence, the chaotic swirling of fluids behind everything from jet engine combustion to ocean currents, is among the most expensive phenomena in physics to simulate. Accurate results can require supercomputers running for weeks.

Machine learning offers a shortcut: train a neural network to upscale a coarse, cheap simulation into a fine-grained one. But these networks face a problem. Physics doesn’t care which direction you’re looking. A swirling eddy looks identical whether you rotate your view 90 or 180 degrees, yet standard AI models don’t automatically know this. Ignore rotational symmetry, and the outputs become physically inconsistent.

A team from MIT has shown that for turbulent flows, you may not need to engineer rotational awareness into your model at all. The physics does it for you.

Key Insight: Turbulence’s statistical isotropy acts as natural data augmentation, teaching standard convolutional neural networks rotational equivariance without any explicit engineering, but only when and where the turbulence is sufficiently isotropic.

How It Works

At the core of the study is super-resolution (SR): reconstructing a high-resolution turbulent velocity field from a coarse, low-resolution input. The model is a compact multi-scale convolutional neural network (CNN), a workhorse image-processing architecture that analyzes patterns at multiple spatial scales. It upsamples 3D velocity fields through trilinear interpolation and convolutional refinement. Nothing exotic. No symmetry-aware design.

The property under investigation is rotational equivariance: if you rotate an input, the output should rotate by the same amount. A perfectly equivariant model satisfies f(g·U) = g·f(U) for any rotation g. To quantify violations, the team defined an equivariance error: the average pointwise difference between rotating-then-predicting versus predicting-then-rotating, computed across all 24 rotations of the octahedral symmetry group (the distinct ways to rotate a cube onto itself).

The experimental design is what makes this convincing. The team sampled 3D subdomains from a turbulent channel-flow simulation in the Johns Hopkins Turbulence Database, targeting two regions:

• Boundary-layer subdomains near the channel walls, where turbulence is strongly anisotropic (the flow has a clear preferred direction)
• Mid-plane subdomains at the channel center, where turbulence is more isotropic (statistically similar in all directions)

If isotropy genuinely acts as implicit rotational augmentation, models trained on mid-plane data should develop better equivariance even without seeing explicitly rotated examples.

That’s exactly what happened. Mid-plane models consistently achieved lower equivariance error than boundary-layer models. More training data, whether from additional timesteps or spatial subdomains, pushed the error down further. Greater variety in the training set means more rotational configurations encountered, which translates to better implicit symmetry learning.

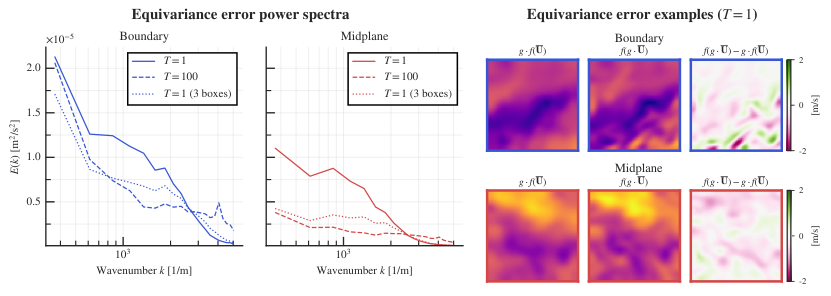

The third finding cuts deepest. Equivariance error turns out to be scale-dependent: the network makes larger rotational errors at large spatial scales than at small ones, regardless of training data source. This mirrors Kolmogorov’s local isotropy hypothesis, which predicts that small-scale eddies behave isotropically even when large-scale flow is strongly directional. The physics of turbulence shows up directly in the network’s error structure.

Why It Matters

The machine learning community has invested heavily in equivariant neural networks that have symmetry mathematically baked in, guaranteeing rotational consistency regardless of input. They work well, but they add architectural complexity and computational overhead.

This paper’s point is more pragmatic: if your training data is already statistically symmetric, the model learns the symmetry on its own. You don’t always need the extra machinery.

Turbulence super-resolution is increasingly used in climate modeling, aerodynamics, and plasma physics, all areas where high-resolution simulation is essential but expensive. Knowing when you need a symmetry-aware architecture (strongly anisotropic boundary flows) versus when a standard CNN will do (isotropic bulk turbulence) helps practitioners make better design choices.

The results sharpen a theoretical point too: to generalize to rotated inputs, you need either explicit augmentation or naturally isotropic training data. There is no third option.

Open questions remain. The study used a specific channel-flow geometry and a fixed architecture. Whether these findings extend to more complex flows like combustion, magnetohydrodynamics, or atmospheric turbulence hasn’t been tested yet. And the connection between Kolmogorov’s hypothesis and learned equivariance deserves deeper theoretical work.

Bottom Line: Standard neural networks quietly learn the rotational symmetry of turbulence when training data is sufficiently isotropic. The result connects a 1941 physics hypothesis to modern machine learning practice and tells practitioners exactly when they can skip expensive symmetry-aware architectures.
