Dirac Traces and the Tutte Polynomial

The Big Picture

Imagine counting all the ways strands of spaghetti can cross on a plate. It seems like a purely combinatorial puzzle, yet it ends up being equivalent to a deep problem in particle physics. That’s roughly the idea behind a new result from Joshua Lin at MIT’s Center for Theoretical Physics: a proof that a specific, grueling calculation in quantum field theory (the framework for how subatomic particles interact) is mathematically identical to evaluating a well-known object from graph theory called the Tutte polynomial.

The calculation is the Dirac trace. Whenever physicists compute how electrons or other matter particles interact, they draw Feynman diagrams to track particle exchanges. If a loop of matter particles shows up in one of these diagrams, the math requires multiplying a long chain of Dirac matrices: 4×4 objects encoding how electrons couple to space, time, and electromagnetic fields. These chains can stretch dozens of matrices long and represent one of the most tedious bottlenecks in modern particle physics.

The results almost always diverge to infinity unless physicists apply a standard trick called dimensional regularization. Instead of working in four spacetime dimensions, you treat the dimensionality as a free variable, d. This tames the infinities but forces you to work with abstract d-dimensional Dirac matrices rather than concrete 4×4 grids. Lin has now proven that computing these d-dimensional traces is mathematically equivalent to evaluating the Tutte polynomial of an associated graph.

Key Insight: The anticommutation relations of Dirac matrices obey the same deletion-contraction recurrence that defines the Tutte polynomial. Every Dirac trace maps onto a graph theory problem, which means new algorithms and identities from combinatorics apply directly.

How It Works

The whole connection rests on one observation. The defining relation of Dirac matrices is:

{γ^μ, γ^ν} = 2g^{μν} · 1, g^{μμ} = d

Swapping two adjacent gamma matrices produces a correction term proportional to the metric tensor, a table encoding distances and angles in spacetime. This swap-or-contract structure is exactly the recurrence used to compute the Tutte polynomial via deletion-contraction: you either remove an edge or merge its endpoints, then combine the results recursively. Dirac algebra is doing graph theory in disguise.

To make this precise, Lin builds a graph from any string of Dirac matrices. Arrange the matrix indices around a circle and draw chords connecting each pair of repeated indices. Each chord becomes a vertex of a new graph; two vertices share an edge if their chords cross. This “chord intersection graph,” Gr(x), encodes the full contraction pattern.

The main theorem states:

Tr_d(γ^μ_{x1} ··· γ^μ_{x2n}) = 4 · (−1)^|E| · (−2)^{n−c} · d^c · T(Gr(x); 1−d/2, −1)

where |E| is the number of edges in Gr(x), c is the number of connected components, and T(Gr(x); x, y) is the Tutte polynomial evaluated at a specific point.

For the physical case d=4, things simplify considerably. The Tutte polynomial gets evaluated at (−1, −1), a special point that Lin identifies with the bicycle number of the graph. The bicycle space is the set of subgraphs where every vertex has even degree. The formula reduces to:

Tr_4 = 4 · (−2)^{n + c + dim(B)}

There’s a computational payoff too. Lin benchmarked standard Mathematica packages (TRACER, FeynCalc, and FormTracer) against a naive implementation using Mathematica’s built-in TuttePolynomial function. For traces of up to 18 gamma matrices, the Tutte-based approach matched or beat the specialized physics codes. On a log-scale runtime plot, the Tutte method stays competitive even as the others slow exponentially.

Dedicated Tutte polynomial algorithms, already well-optimized by the combinatorics community, could be repurposed for particle physics with relatively little effort.

Why It Matters

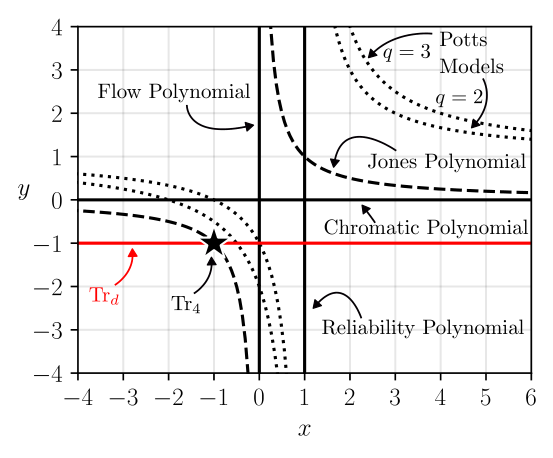

The Tutte polynomial encodes a wide range of mathematical structures: the chromatic polynomial (counting valid map colorings), the Jones polynomial of alternating knots, and the partition function of Potts models for magnetic materials near phase transitions. Lin’s result adds d-dimensional Dirac traces to this list.

On the complexity side, the equivalence carries a catch. Computing the Tutte polynomial is #P-hard, a class believed to be harder than NP-hard, and Lin’s analysis shows Dirac traces are similarly hard in the worst case. But worst-case complexity seldom governs what physicists actually encounter. Graphs from Feynman diagrams have special structure, and the Tutte polynomial connection gives a way to exploit it.

New identities for Dirac traces can now be read off from known graph polynomial identities, a direction the paper starts to develop. As multi-loop calculations push toward ever-longer gamma matrix strings for precision predictions at the LHC, even modest algorithmic speedups compound across thousands of diagrams.

Bottom Line: Lin’s proof that d-dimensional Dirac traces are evaluations of the Tutte polynomial is both a conceptual unification of particle physics and graph theory, and a practical one: it brings new algorithms, new identities, and a rigorous complexity analysis to one of QFT’s most routine yet demanding calculations.
