Deep Set Auto Encoders for Anomaly Detection in Particle Physics

The Big Picture

Imagine you’re a customs agent at the world’s busiest border crossing, tasked with flagging suspicious cargo, but nobody tells you what contraband looks like. All you can do is study “normal,” then flag anything that deviates. Scale that up by a billion, swap the cargo for subatomic particles, and you have the challenge physicists face at the Large Hadron Collider.

The LHC has spent over a decade smashing protons together and cataloging the debris. Theorists have proposed dozens of exotic particles that could appear: dark matter candidates, heavy partner particles, unknown forces. None have been found. Either new physics is hiding somewhere unexpected, or the models are wrong.

That uncomfortable situation has pushed physicists toward a different strategy: forget specific theories, and build detectors that can flag anything unusual, even if you don’t know what you’re looking for.

Bryan Ostdiek at Harvard’s IAIFI developed a tool for exactly this challenge: a Deep Set Variational Autoencoder, a neural network trained to recognize when a collision event doesn’t fit the pattern of ordinary particle physics. It placed among the top methods in a major international benchmark. The catch: it works best when you throw away half the network.

Key Insight: The best way to spot anomalous particle collisions isn’t to reconstruct what you saw. It’s to ask how well the event compresses into a simple, well-behaved mathematical shape. Events that resist compression are suspicious.

How It Works

Particle physics experiments don’t record individual quarks. They record reconstructed objects: jets of particles, electrons, muons, photons, each described by energy and direction. An event might contain anywhere from a few to twenty such objects, and they form a set, not a sequence. There’s no meaningful “first” or “second” particle.

Traditional neural networks struggle with unordered inputs. Ostdiek builds on Particle Flow Networks, architectures designed for exactly this problem. The method works in two stages:

1. A shared neural network (Φ) processes each particle independently, mapping it to a latent vector, a compact numerical fingerprint.
2. All fingerprints get summed across the set, producing a permutation-invariant summary of the entire event. Order doesn’t matter.

This combined summary feeds into a variational layer, which encodes the event not as a single point in latent space but as a Gaussian probability distribution. Training pushes all Standard Model events toward a common, well-organized region. The rest is simple: events that don’t compress into this Gaussian structure get flagged.

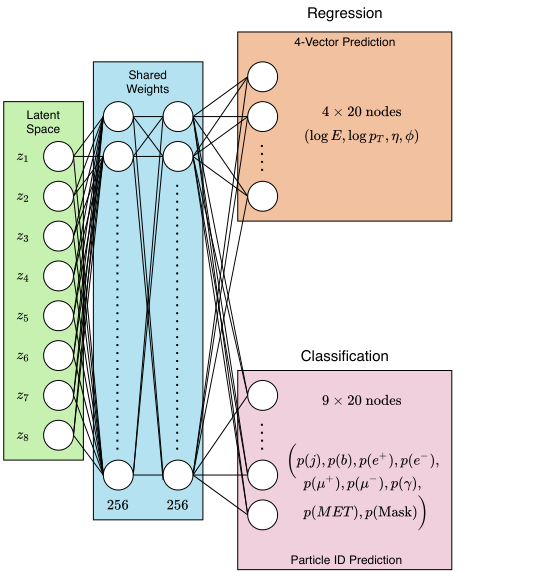

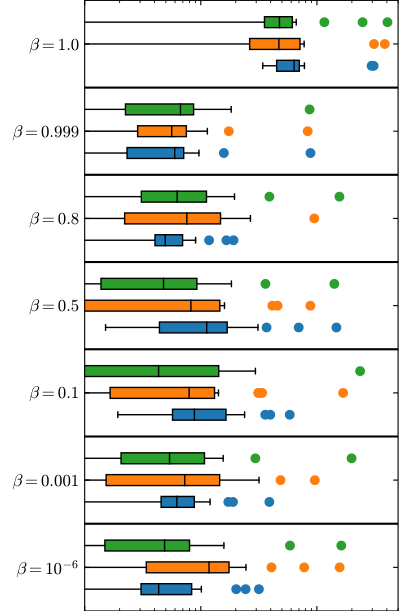

The full model includes a decoder that reconstructs the original particle set using a Chamfer loss, a distance measure for unordered sets. A single parameter, β, controls how much training cares about reconstruction versus latent structure:

• β = 0: Only reconstruction matters. The network works hard to rebuild each event.
• β = 1: Only latent structure matters. The network maps events to a Gaussian and nothing more.
• Best performance: β = 1, meaning the decoder is completely irrelevant.

At β = 1, you don’t need a decoder at all. The method reduces to a pure encoder asking one question: how well does this event fit the Gaussian? Standard Model events, trained to fit that shape, compress easily. New physics (unusual particle multiplicities, unexpected energy distributions, exotic combinations) resists.

Ostdiek tested the approach on the Dark Machines Anomaly Score Challenge, a large-scale benchmark. The dataset included over one billion simulated proton-proton collisions at 13 TeV, drawn from 26 Standard Model processes. The challenge covered four search channels: a hadronic channel with missing energy, two leptonic channels, and a high-activity inclusive channel.

Eleven exotic physics scenarios covered dark matter candidates and two variants of supersymmetry (a theoretical framework predicting heavier partner particles for every known particle), spanning 18 different mass spectra. Signals were initially blinded, so methods had to perform without knowing what was hidden in the test data.

The Deep Set VAE with β = 1 ranked among the top-performing methods on both open and blinded datasets. It was particularly strong at flagging individual anomalous events, a harder task than finding statistical bumps in aggregate distributions.

The other top methods shared a common theme: all used “fixed target” approaches, either mapping events to a Gaussian or to a single fixed vector. Methods that tried to reconstruct their inputs underperformed consistently. One hypothesis: reconstruction forces the network to memorize event details rather than learn the deep structure of what’s “normal.”

Why It Matters

Model-agnostic anomaly detection is becoming essential for the LHC’s future. The final datasets will accumulate through the 2030s, and tools like this one improve the odds of catching something genuinely new, even if it matches no existing theoretical prediction.

Permutation invariance matters here for practical reasons, not just aesthetic ones. Networks that treat particles as unordered sets learn the underlying physics better than those that force an arbitrary sequence onto them.

The fact that “learn a good encoding” beats “reconstruct the input” isn’t specific to particle physics. The same principle applies wherever data arrives as unordered collections: molecular modeling, 3D point cloud analysis, social network graphs. Whether the decoder half of an autoencoder actually earns its keep is a question worth revisiting across these fields.

Bottom Line: By treating particle collision events as mathematical sets and optimizing purely for compact latent representations, Ostdiek’s Deep Set VAE achieved top-tier anomaly detection in a major international challenge and showed that the decoder half of an autoencoder may be hurting more than it helps.
