Concatenating Algebraic Codes over High-Rate Quantum LDPC Codes

The Big Picture

Imagine trying to whisper a secret across a crowded, noisy room. You could shout louder, but that draws attention and costs energy. Or you could relay the message in layers: one group passes it reliably, another checks their work. That layered relay strategy is the core idea behind quantum error correction, and getting it right could be the difference between a quantum computer that changes the world and one that produces only expensive noise.

Quantum computers are extraordinarily fragile. Their basic units of information, called qubits, can be corrupted by a stray photon, a tiny magnetic fluctuation, or even heat from nearby electronics. To guard against this, researchers store information redundantly across many qubits at once, much like a spell-checker exploits the redundancy of English to catch typos.

The trouble is that the most reliable protection schemes require qubits to interact with distant neighbors on a chip, which is fiendishly hard to engineer. The safest schemes tend to be the most hardware-demanding; the most hardware-friendly tend to offer the weakest protection. This tradeoff has haunted the field for decades.

A new paper from IBM Quantum and MIT charts a path through it. By layering two protective schemes in a hierarchy, and treating entire groups of protected qubits as single, high-dimensional information units, the team shows that a concatenated code built from 144-qubit inner blocks can match error-suppression levels previously expected to need 288-qubit blocks.

Key Insight: By viewing each block of a quantum LDPC code as a single high-dimensional “Galois qudit,” the researchers unlock access to Reed-Solomon outer codes with powerful list decoders, reaching the teraquop regime with fewer physical qubits than any previously known alternative.

How It Works

The architecture is a two-level concatenated code: an inner layer handles noisy physical qubits, while an outer layer operates on the cleaned-up information the inner layer produces.

The inner workhorse is the gross code, formally a [[144, 12, 12]] bivariate bicycle (BB) code. It uses 144 physical qubits to encode 12 logical qubits with a minimum distance of 12; that last number measures robustness, since a higher minimum distance means more simultaneous errors can be caught before information is lost. BB codes have emerged as leading candidates for superconducting hardware: their connection pattern requires qubits to talk to non-adjacent neighbors on the chip, a tricky constraint, but the structure is sparse enough to be practically buildable.

The outer code is where things get creative. Previous concatenation approaches used the surface code as the inner layer, which produces one logical qubit per block. The gross code produces twelve.

When errors strike a gross code block, those twelve logical qubits fail together in correlated patterns, not independently. Treating them as twelve separate units is the wrong mathematical model, and it forecloses access to the best outer codes.

The IBM/MIT team’s fix: treat each gross code block as a single Galois qudit, a quantum object living in a 4,096-dimensional space (2¹² = 4,096) governed by the arithmetic of a Galois field, GF(4096). This reframing is more than notation. It opens the door to quantum Reed-Solomon codes as the outer layer, the same family that protects data on CDs, DVDs, and deep-space links. Reed-Solomon codes are valued for their efficiency and for supporting list decoders: algorithms that produce a short list of plausible corrections rather than committing to a single best answer, dramatically reducing the chance of a decoding failure.

Fault-tolerant syndrome extraction (diagnosing what went wrong without disturbing the quantum data) gets a matching upgrade. The team develops a Galois qudit Shor scheme, generalizing the classic fault-tolerance protocol first introduced by Peter Shor so that measurement errors are handled by Reed-Solomon codes rather than simple repetition.

One unexpected finding: a lightweight fault-tolerance approach that fails badly for ordinary qubits turns out to work well for large-alphabet qudits. The larger the alphabet, the more structured the error patterns become, and the easier they are to correct. This hints at a fundamentally different theory of fault tolerance for high-dimensional systems.

The protocol is tightened through three optimizations:

• Improved bicycle instruction error rates: Logical gates native to the gross code are benchmarked more carefully, yielding better error estimates that feed the outer decoder.
• Novel compilation strategies: Efficient methods for compiling multi-qudit entangling operations reduce circuit depth and idle time.
• Decoder post-selection: Techniques for flagging and discarding suspicious syndrome outcomes further suppress residual logical errors.

Why It Matters

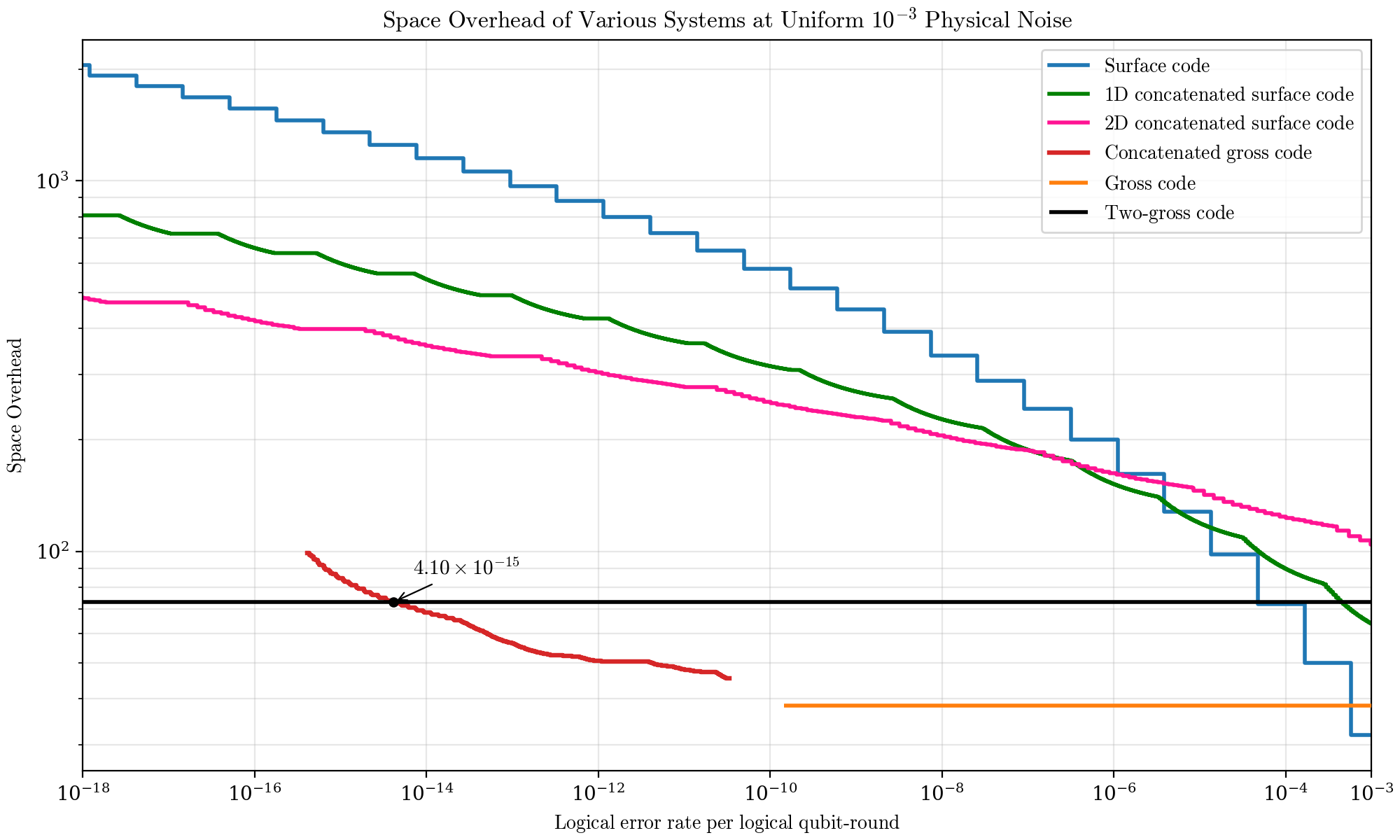

The headline result: reaching the teraquop regime (a logical error rate below one error per trillion logical operations) at a physical noise rate of 10⁻³, using fewer qubits than any previously known scheme.

The 288-qubit “two-gross code” could already reach this regime; the 144-qubit gross code alone could not. Concatenation closes that gap using roughly half the hardware per block, with a more favorable engineering profile: the inner code’s connectivity structure is preserved, and no new long-range couplings are required.

The authors are explicit that the gross code is a case study, not a destination. Their conceptual toolkit (Galois qudits, quantum Reed-Solomon outer codes, list decoding) should transfer broadly. Any high-rate quantum LDPC code that encodes many logical qubits per block could, in principle, be plugged into this framework.

As the field develops inner codes with higher rates and distances, the outer layer’s ability to exploit those properties through Reed-Solomon list decoding will grow more valuable. The observation that lightweight fault tolerance works for large-alphabet qudits also opens a new research direction: a systematic theory of fault tolerance built on Galois field arithmetic, rather than treating qudits as merely “bigger qubits.”

Open questions remain. The current analysis covers memory (storing quantum information reliably), not computation. Extending the scheme to support universal fault-tolerant gate sets over Galois qudits is the natural next step, and likely nontrivial. Correlated error structure within gross code blocks, while tamed here by the Galois qudit abstraction, may offer additional structure that smarter decoders could exploit.

Bottom Line: By treating quantum LDPC code blocks as single Galois qudits and pairing them with Reed-Solomon outer codes and list decoders, this work crosses the teraquop threshold with a 144-qubit inner code that couldn’t get there alone, cutting hardware cost roughly in half and pointing toward a richer algebraic theory of quantum fault tolerance.
