A Framework for Closed-Loop Robotic Assembly, Alignment and Self-Recovery of Precision Optical Systems
Authors
Seou Choi, Sachin Vaidya, Caio Silva, Shiekh Zia Uddin, Sajib Biswas Shuvo, Shrish Choudhary, Marin Soljačić
Abstract
Robotic automation has transformed scientific workflows in domains such as chemistry and materials science, yet free-space optics, which is a high precision domain, remains largely manual. Optical systems impose strict spatial and angular tolerances, and their performance is governed by tightly coupled physical parameters, making generalizable automation particularly challenging. In this work, we present a robotics framework for the autonomous construction, alignment, and maintenance of precision optical systems. Our approach integrates hierarchical computer vision systems, optimization routines, and custom-built tools to achieve this functionality. As a representative demonstration, we perform the fully autonomous construction of a tabletop laser cavity from randomly distributed components. The system performs several tasks such as laser beam centering, spatial alignment of multiple beams, resonator alignment, laser mode selection, and self-recovery from induced misalignment and disturbances. By achieving closed-loop autonomy for highly sensitive optical systems, this work establishes a foundation for autonomous optical experiments for applications across technical domains.
Concepts
The Big Picture
Imagine handing a master optician a box of scattered lenses, mirrors, and mounts and asking them to build a working laser cavity from scratch, without touching anything themselves. They’d spend hours carefully placing each component, making minute adjustments, watching the beam, tweaking again. Now imagine a robot doing that job, autonomously, with no prior knowledge of where anything is placed.
That’s not a future scenario. It just happened in a lab at MIT.
Precision optics sits at the heart of modern science. Quantum computers need it. Gravitational wave detectors need it. Atomic clocks, microscopes, and the machines that print computer chips all depend on optical setups so sensitive that a mirror tilted by a fraction of a degree, or shifted by the width of a human hair, can destroy weeks of work.
Yet while chemistry and biology labs have embraced robotic automation for years, optics has stubbornly remained a hands-on, expert-only domain. A team from MIT’s Research Laboratory of Electronics, including researchers affiliated with IAIFI, set out to change that.
Key Insight: The researchers built a closed-loop robotic system that can autonomously assemble, align, and self-repair a precision laser cavity from scratch, handling tasks that previously required expert human hands and years of training.
How It Works
The system tackles optics automation through three interlocking capabilities: build it, align it, and keep it alive.

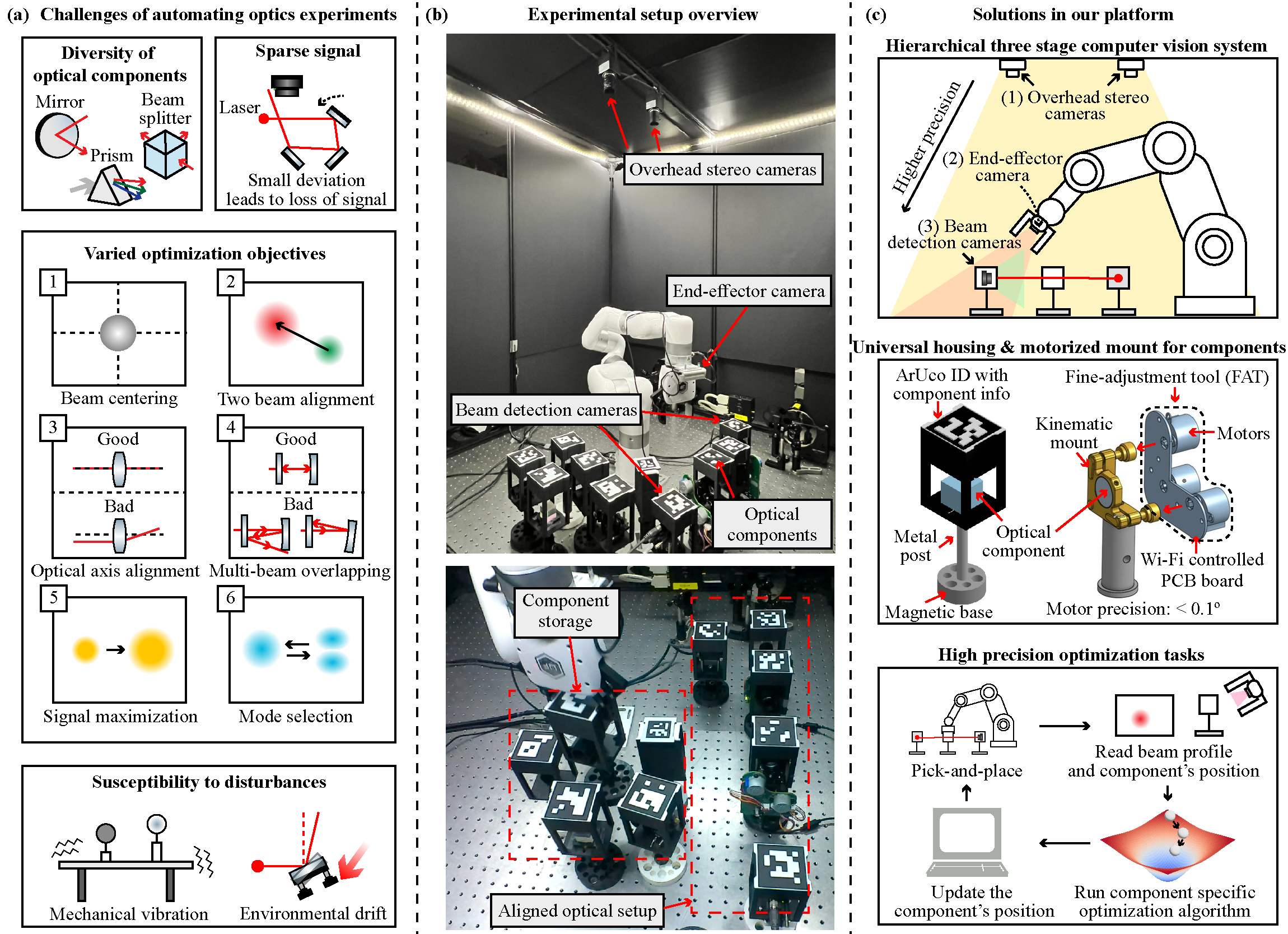

Assembly starts with perception. The robot uses a hierarchical computer vision pipeline, a cascade of image recognition stages, to identify optical components scattered randomly across a lab bench. Small reference patterns called fiducial markers are attached to each component, similar to QR codes. The system reads these markers to determine each piece’s exact position and orientation, then uses a robotic arm to place it into its designated slot.
But placement alone doesn’t make an optical system work. Dropping a lens in approximately the right place leaves you with a non-functional setup. Optics demands more.
The team formalizes alignment as an explicit optimization problem. For spatial alignment, the robot takes gradient steps: nudge the component, measure the beam position, compute which direction improves things, repeat. Angular alignment works the same way. The robot adjusts mirror angles while watching where the laser beam goes, iteratively steering toward the target configuration.

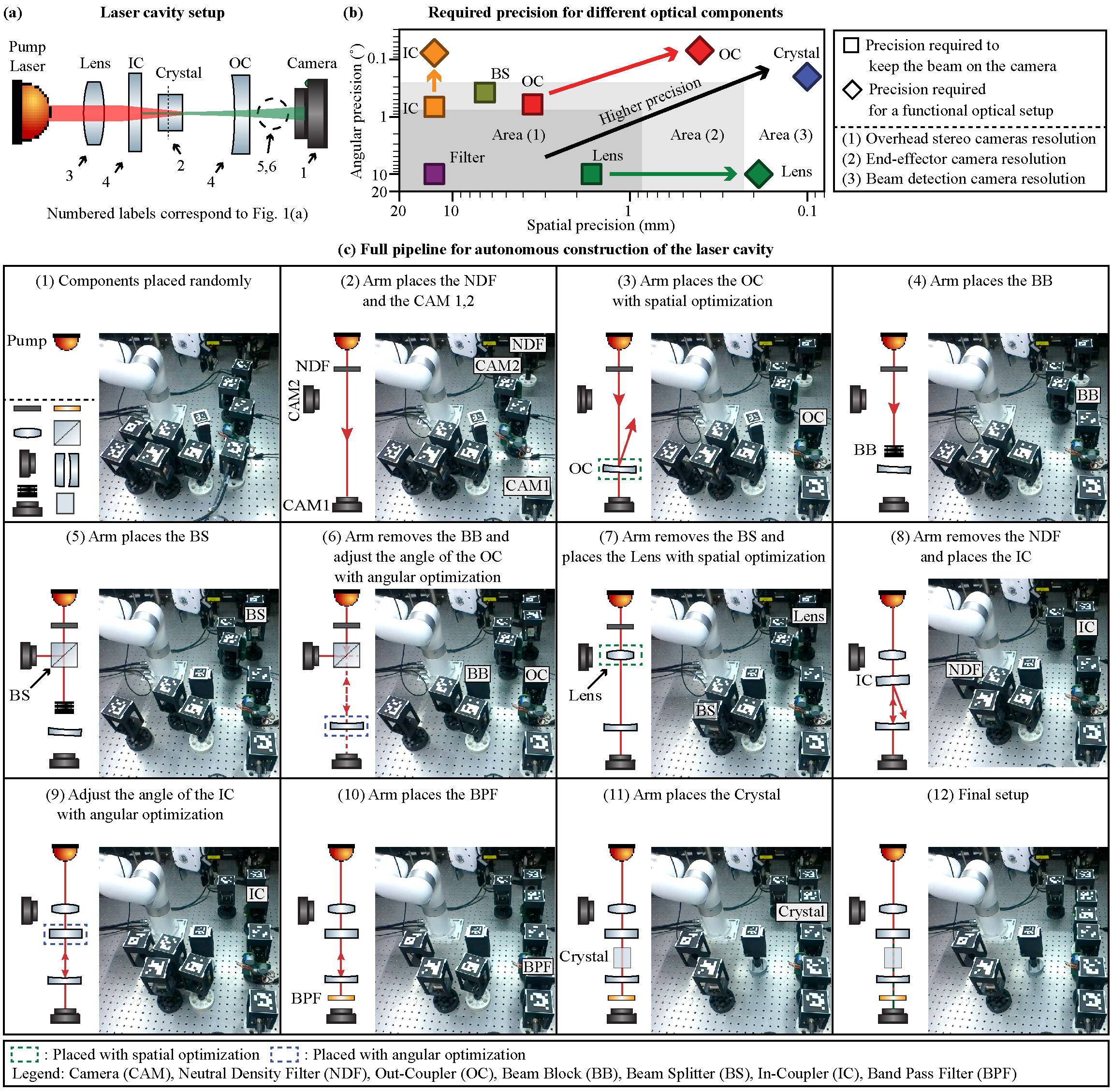

The paper demonstrates this on a Fabry-Pérot laser cavity, a resonator built from two precisely angled mirrors that forces the laser to oscillate at specific frequencies. Think of it as a precisely tuned echo chamber for light. Getting the cavity to lase requires both mirrors positioned and angled just right: the optical equivalent of tuning a guitar string while simultaneously adjusting its tension, length, and pickup placement.
The system also performs laser mode selection. It identifies which spatial mode (the cross-sectional pattern the beam forms) the cavity is producing and can steer toward specific modes by adjusting alignment. For applications where beam quality matters, this is essential.

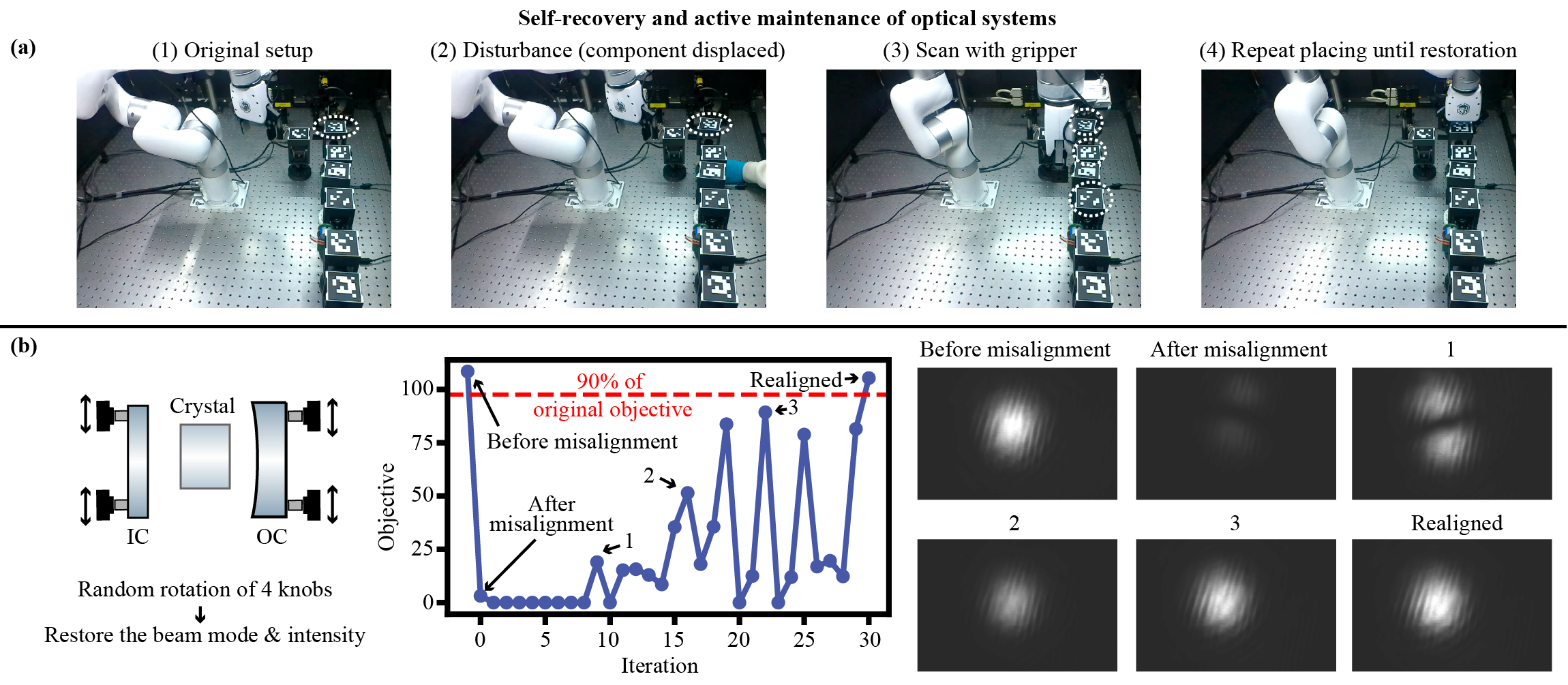

The most interesting capability shows up when something goes wrong. The researchers deliberately introduced disturbances, bumping components and inducing misalignment, then watched the system respond. Rather than failing silently or requiring human intervention, the robot detects degraded optical performance and autonomously executes a recovery sequence.
This closed-loop behavior is what separates the work from earlier robotic optics platforms. Previous systems operated open-loop: place the component, hope it’s close enough, move on. Here, the optical signal itself (the laser beam’s position, intensity, and mode) feeds back into every decision the robot makes. The system is always watching, always adjusting.
The team also engineered specialized end-effectors, custom tool attachments for the robotic arm, since standard grippers can’t handle sensitive optical mounts without inducing vibrations or misalignment.
Key technical features of the platform:
- Hierarchical vision: coarse detection narrows to fine-grained pose estimation
- Gradient-based spatial optimization: small steps guided by beam position feedback
- Angular sweep optimization: iterative mirror adjustment while monitoring cavity output
- Continuous monitoring: detects performance degradation and triggers autonomous recovery
- Modular task decomposition: complex assembly broken into discrete, sequenced sub-tasks
Why It Matters
The implications go well beyond laser cavities. Optical setups are the backbone of experiments across quantum information science, spectroscopy, gravitational wave detection, and astrophysical instrumentation, exactly the domains where IAIFI works. In every one of those fields, highly skilled researchers spend substantial time on optical assembly and maintenance instead of doing science. A generalizable robotic framework that handles this labor could free up enormous amounts of human effort.
There’s also a reproducibility angle. Human-assembled optical setups vary from lab to lab, researcher to researcher. Robotic assembly guided by consistent optimization routines could make optical experiments as reproducible as a chemical synthesis protocol. In fields where subtle setup variations can make or break a result, that matters a lot.
The open questions are real. The current system works on a structured bench with defined component positions and a well-characterized cavity topology. Extending it to arbitrary optical systems (adaptive optics, complex interferometers, quantum photonic circuits) will require richer perception, more sophisticated planning, and tighter integration between experiment design and robotic control. The gap between “autonomous laser cavity” and “autonomous quantum optics lab” is large, but this work plants a flag at the starting line.
Bottom Line: By building a robot that can assemble, align, and repair a precision laser cavity without human help, this MIT team has shown that the last major holdout of manual scientific labor, precision optics, is finally within reach of automation.
IAIFI Research Highlights
This work sits squarely at the intersection of AI perception and precision experimental physics, showing that machine learning-driven computer vision and optimization can handle optical alignment, a task once considered too sensitive and expertise-dependent for automation.
The framework pushes closed-loop robotic autonomy forward by integrating hierarchical vision, gradient-based optimization, and real-time feedback into a unified system capable of self-recovery. This is a concrete step toward generalizable AI agents for physical lab environments.
Autonomous optical assembly lowers the barrier to constructing and maintaining the precision instruments (laser cavities, interferometers, spectroscopic setups) that fundamental physics experiments in quantum information, atomic physics, and astrophysics depend on.
Future work will extend the framework to more complex and reconfigurable optical systems. The paper is available at [arXiv:2603.21496](https://arxiv.org/abs/2603.21496).
Original Paper Details
A Framework for Closed-Loop Robotic Assembly, Alignment and Self-Recovery of Precision Optical Systems
[2603.21496](https://arxiv.org/abs/2603.21496)
Seou Choi, Sachin Vaidya, Caio Silva, Shiekh Zia Uddin, Sajib Biswas Shuvo, Shrish Choudhary, Marin Soljačić
Robotic automation has transformed scientific workflows in domains such as chemistry and materials science, yet free-space optics, which is a high precision domain, remains largely manual. Optical systems impose strict spatial and angular tolerances, and their performance is governed by tightly coupled physical parameters, making generalizable automation particularly challenging. In this work, we present a robotics framework for the autonomous construction, alignment, and maintenance of precision optical systems. Our approach integrates hierarchical computer vision systems, optimization routines, and custom-built tools to achieve this functionality. As a representative demonstration, we perform the fully autonomous construction of a tabletop laser cavity from randomly distributed components. The system performs several tasks such as laser beam centering, spatial alignment of multiple beams, resonator alignment, laser mode selection, and self-recovery from induced misalignment and disturbances. By achieving closed-loop autonomy for highly sensitive optical systems, this work establishes a foundation for autonomous optical experiments for applications across technical domains.
